High Precision Press | Metal Stamping Industry | 15 - 315 Metric Tons Capacity

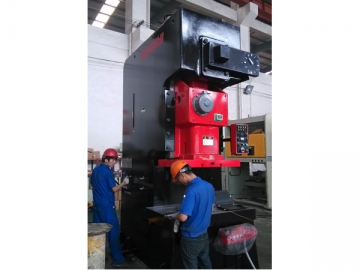

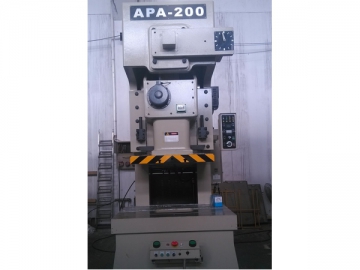

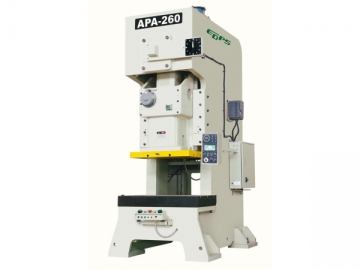

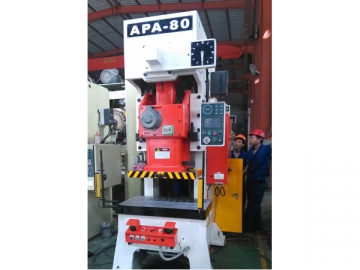

The APA series of high precision stamping press is a powerful metalworking machine with stamping capacity from 15-315 tons. This incredibly powerful stamping press equipment is suitable for variety of different manufacturing applications such as sheet metal punching, forming and extension. These metal forming processes are used to produce vehicles, watches, household appliances, hand tools and electronics among many other goods.

Performance features

Extra-long precision six-point box type gibbing
These gibbing pieces ensure that the sliding pieces of the machine move accurately remain secure. Since the force of the punching press is delivered vertically, minimizing lateral movement is absolutely crucial. The box type gibs keep the clearance settings of the machines at a stable minimal level with the aid of laminated spacers.

Super rigid steel frame
The APA series stamping press is designed to resist deflection and to produce accurate pressings, leading to longer die life, even at full tonnage loads. The heavy, one-piece welded steel frame undergoes rigorous stress treatments to withstand even the most demanding loads during operation.

Highly responsive
Our fast response hydraulic overload protection system (HOLP) will relieve the pressure of a tonnage overload in milliseconds, causing the press to immediately stop, preventing damage to the power press and the surrounding workers. The hydraulic pressure of the system can be reconfigured by pushing the reset button on the control console.

High performance wet clutch and brake
The clutch of the power press machine delivers high torque at relatively low air pressure and angular mass. The clutch and brake friction linings are high performance features with low vibration and noise. The linings operate in an enclosed oil bath, providing highly effective heat dissipation. The combination of these features greatly extends the working life of the machine and significantly improves performance even under heavy repeated operation.

Convenient die cushion installation
The compact design of the die cushion facilitates simple removal and replacement as it is bolted to the bolster with clear access for the user.

Standard configuration

1. Frequency converter
2. Oil pressure overload protection device
3. Manual slide adjustment device (60Tons and below)
4. Electric slide adjustment device (80Tons and above)
5. Mechanical die height indicator (60Tons and below)
6. Electric die height indicator (60Tons and above)
7. Slide and mould balancing device
8. Rotary cam switch
9. Misfeed detection device
10. Power socket
11. Crank angle indicator
12. Electrical stroke counter
13. Air source connector
14. Over-run safety device
15. Air jetting device
16. Maintenance tool box
17. Operation manual

Optional configuration

1. Wet clutch brake
2. Electrical lubrication system
3. Pneumatic die cushion device
4. Foot switch
5. Quick die change device (Die lifter, die clamper, or mould-shift arm)
6. Upper slide feeding device
7. Anti-vibration foot
8. Photo-electronic safety device
9. Feeder (air, machinery, and NC)
10. Feeding rack
11. Straightening machine
12. Manipulator
13. Mould lighting device
14. Touch screen (preset counter, total counter)
15. PAC 100 control system
16. Man-machine control system

Overall dimension

Specifications	APA-25	APA-35	APA-45	APA-60	APA-80	APA-110	APA-160	APA-200	APA-260	APA-315
A	1100	1200	1400	1420	1595	1720	2140	2440	2605	2605
B	840	900	950	1000	1170	1290	1390	1690	1850	1870
C	2135	2345	2425	2780	2980	3195	3670	4075	4470	4490
D	680	800	850	900	1000	1150	1250	1400	1500	1500
E	300	400	440	500	550	600	800	820	840	840
F	470	520	560	700	770	910	990	1130	1130	1130
G	250	285	340	400	420	470	550	630	700	700
H	800	790	800	795	830	830	910	1030	1030	1030
I	260	290	320	420	480	530	650	650	750	770
J	444	488	502	526	534	616	660	790	900	900
K	160	205	225	255	280	305	405	415	430	430
L	980	1040	1170	1180	1310	1420	1760	2040	2005	2005
M	700	800	840	890	980	1100	1200	1400	1560	1580
N	540	620	670	720	780	920	1000	1160	1300	1320
0	1275	1375	1575	1595	1770	1895	2315	2615	2780	2780
P	278	278	313	333	448	488	545	593	688	688
Q	447	560	585	610	620	685	725	805	875	885
R	935	1073	1130	1378	1506	1650	1960	2188	2460	2480

Technical parameters of Stamping Press

Name	Unit	APA-15	APA-25A	APA-25		APA-35		APA-45		APA-60		APA-80		APA-110		APA-160		APA-200		APA-260		APA-315
Model		V type	V type	V type	H type	V type	H type	V type	H type	V type	H type	V type	H type	V type	H type	V type	H type	V type	H type	V type	H type	V type	H type
Capacity	Ton	15	25	25		35		45		60		80		110		160		200		260		315
Rated tonnage point	mm	1	3.2	3.2	1.6	3.2	1.6	3.2	1.6	4	2	4	2	6	3	6	3	6	3	7	3.5	7	3.5
Variable speed	s.p.m	120-180	60-140	60-140	130-200	40-120	110-180	40-100	100-150	35 - 90	80-120	35-80	80-120	30-60	60-90	20-50	40-70	20-50	50-70	20-40	40-50	20-35	35-50
Constant speed	s.p.m	130	110	110		85		75		65		65		50		35		35		30		30
Stroke	mm	60	80	60	30	70	40	80	50	120	60	150	70	180	80	200	90	200	100	250	150	280	170
Die height	mm	200	195	200	215	220	235	250	265	310	340	340	380	360	410	460	510	460	510	500	550	550	600
Slide adjustment	mm	50	50	50		55		60		75		80		80		100		110		120		120
Slide area	mm	300×230×50	300×230×50	300×230×50		360×250×50		400×300×60		500×360×70		560×420×70		650×470×80		700×550×90		850×630×90		950×700×100		1130×750×110
Bolster area	mm	680×300×70	680×300×65	680×300×70		800×400×70		850×440×80		900×500×80		1000×550×90		1150×600×110		1250×800×140		1400×820×160		1500×840×180		1600×900×200
Shank hole	mm	038.1	038.1	038.1		038.1		038.1		050		050		050		065		065		065		065
Main motor	kw.p	2.2×6	3.7×4	3.7×4		3.7×4		5.5×4		5.5×4		7.5×4		11×4		15×4		18×4		22×4		30×4
Slide adjust mechanism	HP	Manual operation										Electric driving
Air pressure	kg/cm²	6	6	6		6		6		6		6		6		6		6		6		6
Press precision		GB(JIS)1 class	GB(JIS)1 class	GB(JIS)1class		GB(JIS)1class		GB(JIS)1class		GB(JIS)1 class		GB(JIS)1class		GB(JIS)1class		GB(JIS)1 class		GB(JIS)1class		GB(JIS)1class		GB(JIS)1class
Press dimension(H×W×H)	mm	1236×830×1920	1280×850×2200	1280×850×2200		1380×900×2400		1575×950×2500		1595×1000×2800		1800×1180×2980		1900×1300×3200		2315×1400×3670		2615×1690×4075		2780×1850×4470		2870×1980×4830
Press weight	Tons	1.8	2.1	2.1		3		3.8		5.6		6.5		9.6		16		23		32		36
Die cushion capacity	Ton	-	-	-		2.3		2.3		3.6		3.6		6.3		10		14		14		14
Die cushion stroke	mm	-	-	-		50		50		70		70		80		80		100		100		100
Die cushion effective area	mm²	-	-	-		300×230		300×230		350×300		450×310		500×350		650×420		710×480		810×480		810×480

Download PDF

Slide

Bolster

Model	A	B	C	D	E	F	G	H	I	T type groove
APA-15	240	120	90	300	-	150	Φ 38.1	80	230	Ⅰ
APA-25A	240	120	90	300	-	150	Φ 38.1	80	230	Ⅰ
APA-25	240	120	90	300	-	150	Φ 38.1	80	230	Ⅰ
APA-35	280	140	120	360	-	160	Φ 38.1	100	250	Ⅰ
APA-45	300	150	120	400	-	210	Φ 38.1	120	300	Ⅰ
APA-60	320	160	150	500	220	220	Φ 50	160	360	II
APA-80	360	180	150	560	300	220	Φ 50	180	420	II
APA-110	400	200	160	650	300	220	Φ 50	220	470	II
APA-160	440	220	220	700	300	175	Φ 65	220	550	II
APA-200	480	240	280	850	420	200	Φ 65	300	630	II
APA-260	520	260	290	950	420	200	Φ 65	300	700	II
APA-315	520	260	290	950	420	200	Φ 65	300	700	II

Capacity curve chart
