Architectural Lighting IP66 LED Floodlight Code AM733XLET-XAET-XCET LED Light
- Equipped with advanced intelligent color management system CCS, can achieve perfect color effect.
- Adopt the new four-in-one LEDs and combine with the scientific secondary optical design to realize perfect lighting effect.
- Lightning protection design and high performance stability.
- Automatic addressing function and can automatically allocate address code.
- Integrate RDM functions to facilitate early debugging and late maintenance of engineering installation and reduce costs.
Product Parameters
| Model | AM733XLET | AM733XAET | AM733XCET |
| Input Voltage | AC100～240V | AC100～240V | AC100～240V |
| Max. Power | 450w | 450w | 450w |
| Power Factor | >0.9 | >0.9 | >0.9 |
| Lumen | 17250lm | 13800lm | 15525lm |
| Peak Beam Intensity | 307500 cd (14°) | 246000cd (14°) | 276750cd (14°) |
| LED Quantity | 36psc RGBL | 36psc RGBA | 36psc RGBW |
| Optical Angle | 14°, 25° | 14°, 25° | 14°, 25° |
| DMX Dimming | 0-100% | 0-100% | 0-100% |
| RTCP | DMX512, RDM | DMX512, RDM | DMX512, RDM |
| Controllable Sections | 4 | 4 | 4 |
| Power Connection | 3m cable input | 3m cable input | 3m cable input |
| Data Connection | 3m cable input / output | 3m cable input / output | 3m cable input / output |
| IP Rating | IP66 | IP66 | IP66 |
| Operation Temperature | -40°C~45°C (operation) | -40°C~45°C (operation) | -40°C~45°C (operation) |
| -40°C~45°C (startup) | -40°C~45°C (startup) | -40°C~45°C (startup) | |
| Housing Material | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum |
| Housing Color | White(optional: grey, black) | White(optional: grey, black) | White(optional: grey, black) |
| Dimensions | 824x252x381mm | 824x252x381mm | 824x252x381mm |
| Weight | 31.3kg | 31.3kg | 31.3kg |

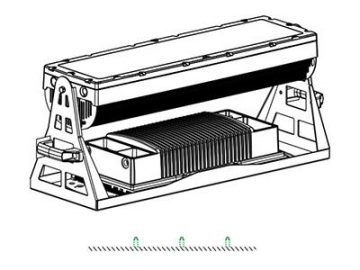

Dimensions
Illumination Contours

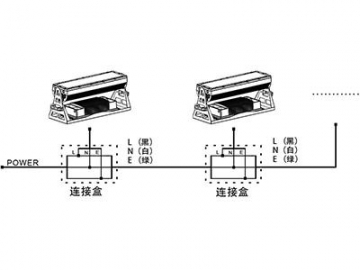

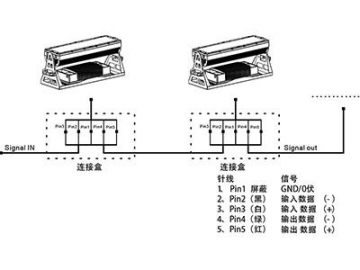

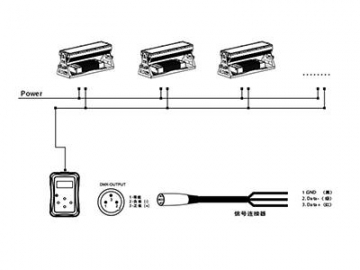

Installations
