Architectural Lighting DMX LED Spot Light Code AM727XLET-XAET-XCET LED Lighting
Characteristics
- 0-100% 16Bit dimmer, DIM4 dimmer technology.
- Integrate RDM functions to facilitate early debugging and late maintenance of engineering installation and reduce costs.
- U type bracket, the base can rotate, the installation is more convenient.
- Lightning protection design and high performance stability.
Product Parameters
| Model | AM727XLET | AM727XAET | AM727XCET |
| Input Voltage | AC100~240V | AC100~240V | AC100~240V |
| Max. Power | 180W | 180W | 180W |
| Power Factor | >0.9 | >0.9 | >0.9 |
| Lumen | 6300lm | 5200lm | 5600lm |
| Peak Beam Intensity | 75000cd(15°) | 62500cd(15°) | 70000cd(15°) |
| LED Quantity | 12pcs RGBL | 12pcs RGBA | 12pcs RGBW |
| Optical Angle | 15° | 15° | 15° |
| DMX Dimming | 0-100% | 0-100% | 0-100% |
| RTCP | DMX512, RDM | DMX512, RDM | DMX512, RDM |
| Controllable Sections | 3 | 3 | 3 |
| Power Connection | 3m cable input | 3m cable input | 3m cable input |
| Data Connection | 3m cable input / output | 3m cable input / output | 3m cable input / output |
| IP Rating | IP66 | IP66 | IP66 |
| Operation Temperature | -40°C~45°C (operation) | -40°C~45°C (operation) | -40°C~45°C (operation) |
| -20°C~45°C (startup) | -20°C~45°C (startup) | -20°C~45°C (startup) | |
| Housing Material | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum |
| Housing Color | White(optional: grey, black) | White(optional: grey, black) | White(optional: grey, black) |
| Dimensions | 530x200x313mm | 530x200x313mm | 530x200x313mm |
| Weight | 12KG | 12KG | 12KG |

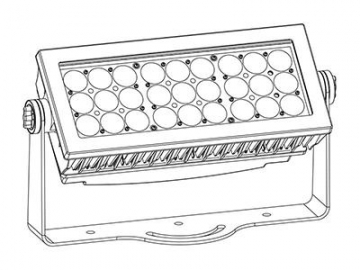

Dimensions
Illumination Contours

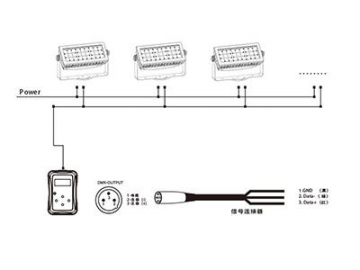

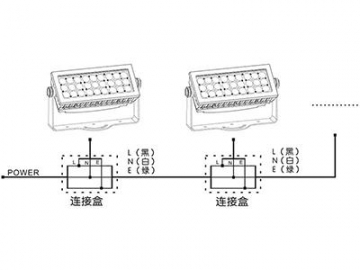

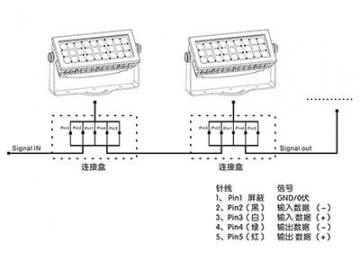

Installations
Optional Accessories
Anti-glare cover
