Architectural Lighting LED Floodlight RGBL RGBA RGBW Code AM732XLET-XAET-XCET LED Light

Architectural Lighting LED Floodlight RGBL RGBA RGBW  Code AM732XLET-XAET-XCET LED Light
Architectural Lighting LED Floodlight RGBL RGBA RGBW  Code AM732XLET-XAET-XCET LED Light
Architectural Lighting LED Floodlight RGBL RGBA RGBW  Code AM732XLET-XAET-XCET LED Light
Architectural Lighting LED Floodlight RGBL RGBA RGBW  Code AM732XLET-XAET-XCET LED Light
Architectural Lighting LED Floodlight RGBL RGBA RGBW  Code AM732XLET-XAET-XCET LED Light
Architectural Lighting LED Floodlight RGBL RGBA RGBW  Code AM732XLET-XAET-XCET LED Light
Architectural Lighting LED Floodlight RGBL RGBA RGBW  Code AM732XLET-XAET-XCET LED Light
  • Equipped with advanced intelligent color management system CCS, can achieve perfect color effect.
  • Adopt the new four-in-one LEDs and combine with the scientific secondary optical design to realize perfect lighting effect.
  • Lightning protection design and high performance stability.
  • Automatic addressing function and can automatically allocate address code.
  • Integrate RDM functions to facilitate early debugging and late maintenance of engineering installation and reduce costs.
Product Parameters
Model AM732XLET AM732XAET AM732XCET
Input Voltage AC100~240V AC100~240V AC100~240V
Max. Power 900W 900W 900W
Power Factor >0.9 >0.9 >0.9
Lumen 32775lm 26220lm 29498lm
Peak Beam Intensity 584300 cd (14°) 467400cd (14°) 525800cd (14°)
LED Quantity 72psc RGBL 72psc RGBA 72psc RGBW
Optical Angle 14°, 25° 14°, 25° 14°, 25°
DMX Dimming 0-100% 0-100% 0-100%
RTCP DMX512, RDM DMX512, RDM DMX512, RDM
Controllable Sections 8 8 8
Power Connection 3m cable input 3m cable input 3m cable input
Data Connection 3m cable input / output 3m cable input / output 3m cable input / output
IP Rating IP66 IP66 IP66
Operation Temperature -40°C~45°C (operation) -40°C~45°C (operation) -40°C~45°C (operation)
-40°C~45°C (startup) -40°C~45°C (startup) -40°C~45°C (startup)
Housing Material Die-casting aluminum Die-casting aluminum Die-casting aluminum
Housing Color White(optional: grey, black) White(optional: grey, black) White(optional: grey, black)
Dimensions 871x252x569mm 871x252x569mm 871x252x569mm
Weight 45.3kg 45.3kg 45.3kg

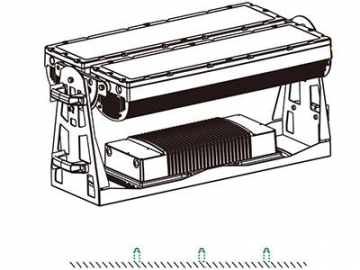

Dimensions
Illumination Contours

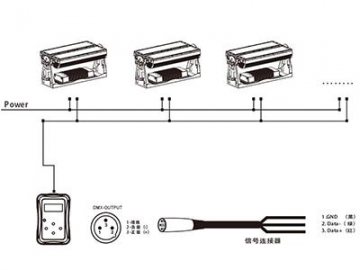

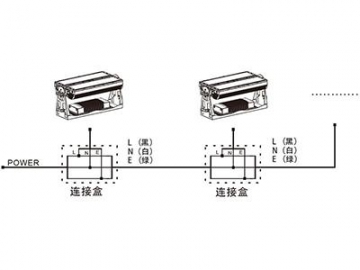

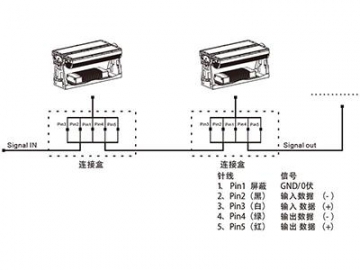

Installations
