Architectural Lighting DMX512 Controlled LED Spotlight Code AM745SCT-SWT-CAT LED Light
Characteristics
- Single arm bracket, equipped with a hood, can be rotated and fixed according to the project requirements.
- Lightning protection design and high performance stability.
- Various lens angles are optional and flexible for various project requirements.
- 2700-6500k color temperature optional, intelligent dimming.
- AC100-277V wide voltage protection design, applicable to all countries.
Product Parameters
| Model | AM745SCT | AM745SWT | AM745CAT |
| Input Voltage | AC100~277V | AC100~277V | AC100~277V |
| Max. Power | 38W | 38W | 38W |
| Power Factor | >0.9 | >0.9 | >0.9 |
| Lumen | 1600lm | 1400lm | 1300lm |
| Peak Beam Intensity | 21830cd(12°) | 17400cd(12°) | 8750cd(25°) |
| LED Quantity | 12pcs cool white | 12pcs warm white | 12pcs amber+cool white |
| Optical Angle | 12°(5°, 25°, 45°) | 12°(5°, 25°, 45°) | 12°(5°, 12°, 45°) |
| DMX Dimming | 0-100% | 0-100% | 0-100% |
| RTCP | DMX512, RDM | DMX512, RDM | DMX512, RDM |
| Controllable Sections | 1 | 1 | 1 |
| Power Connection | 3m cable input | 3m cable input | 3m cable input |
| Data Connection | 3m cable input / output | 3m cable input / output | 3m cable input / output |
| IP Rating | IP67 | IP67 | IP67 |
| Operation Temperature | -40°C~45°C (operation) | -40°C~45°C (operation) | -40°C~45°C (operation) |
| -20°C~45°C (startup) | -20°C~45°C (startup) | -20°C~45°C (startup) | |
| Housing Material | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum |
| Housing Color | White(optional: grey, black) | White(optional: grey, black) | White(optional: grey, black) |
| Dimensions | 244x152x308mm | 244x152x308mm | 244x152x308mm |
| Weight | 4.25KG | 4.25KG | 4.25KG |

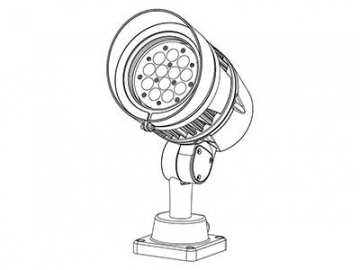

Dimensions
Illumination Contours

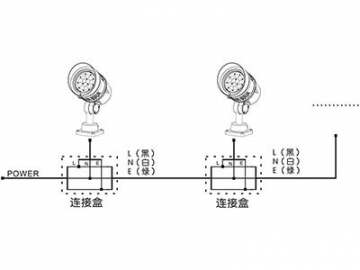

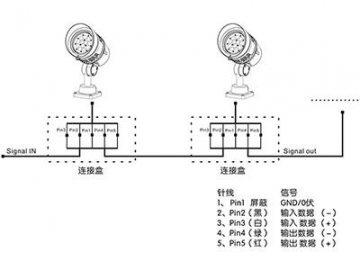

Installations
Optional Accessories
Anti-glare cover
