Architectural Lighting LED Spotlight Code AM724SCT-SWT-CAT LED Lighting
Characteristics
- Compact structure, good waterproof performance.
- 2700-6500k color temperature optional, intelligent dimming.
- Lightning protection design and high performance stability.
- Various lens angles are optional and flexible for various project requirements.
Product Parameters
| Model | AM724SCT | AM724SWT | AM724CAT |
| Input Voltage | AC100~240V | AC100~240V | AC100~240V |
| Max. Power | 115W | 115W | 115W |
| Power Factor | >0.9 | >0.9 | >0.9 |
| Lumen | 5100lm | 5080lm | 4800lm |
| Peak Beam Intensity | 83608cd(12°) | 51022cd(12°) | 32975cd(25°) |
| LED Quantity | 40pcs cool white | 40pcs warm white | 40pcs amber + cool whit |
| Optical Angle | 12°(5°, 25°, 45°) | 12°(5°, 25°, 45°) | 25°(5°, 12°, 45°) |
| DMX Dimming | 0-100% | 0-100% | 0-100% |
| RTCP | DMX512, RDM | DMX512, RDM | DMX512, RDM |
| Controllable Sections | 1 | 1 | 1 |
| Power Connection | 3m cable input | 3m cable input | 3m cable input |
| Data Connection | 3m cable input / output | 3m cable input / output | 3m cable input / output |
| IP Rating | IP67 | IP67 | IP67 |
| Operation Temperature | -40°C~45°C (operation) | -40°C~45°C (operation) | -40°C~45°C (operation) |
| -20°C~45°C (startup) | -20°C~45°C (startup) | -20°C~45°C (startup) | |
| Housing Material | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum |
| Housing Color | White(optional: grey, black) | White(optional: grey, black) | White(optional: grey, black) |
| Dimensions | 370x118x307mm | 370x118x307mm | 370x118x307mm |
| Weight | 8.5KG | 8.5KG | 8.5KG |

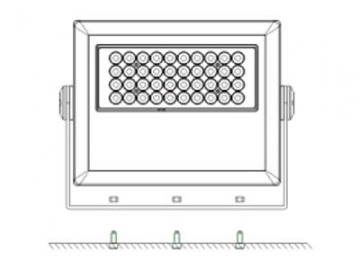

Dimensions
Illumination Contours

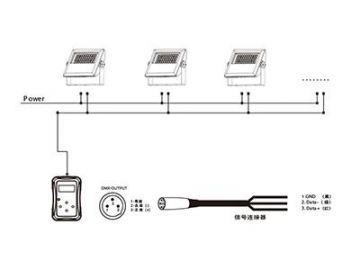

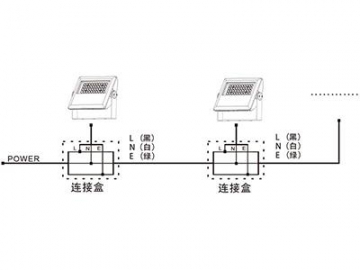

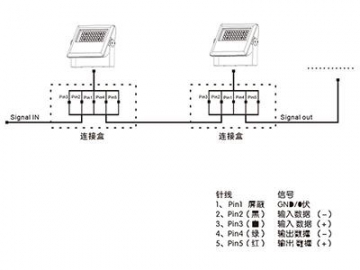

Installations
Optional Accessories
Anti-glare cover
