Architectural Lighting LED Floodlight Code AM722SCT-SWT-CAT LED Lighting
Characteristics
- 0-100% 16Bit dimmer, DIM4 dimmer technology.
- 1800-6500k color temperature optional, intelligent dimming.
- Flexible adjustment of lamp head.
- Lightning protection design and high performance stability.
- CAT version can achieve gold color, creating a golden and brilliant effect precision dial.
Product Parameters
| Model | AM722SCT | AM722SWT | AM722CAT |
| Input Voltage | AC100~240V | AC100~240V | AC100~240V |
| Max. Power | 460W | 460W | 520W |
| Power Factor | >0.9 | >0.9 | >0.9 |
| Lumen | 25561lm | 22300lm | 26500lm |
| Peak Beam Intensity | 718485cd(6°) | 546839cd(6°) | 705000cd(6°) |
| LED Quantity | 180pcs cool white | 180pcs warm white | 180pcs amber + cool white |
| Optical Angle | 6°(12°, 25°, 45°, 40*12°) | 6°(12°, 25°, 45°, 40*12°) | 6°(12°, 25°, 45°, 40*12°) |
| DMX Dimming | 0-100% | 0-100% | 0-100% |
| RTCP | DMX512, RDM | DMX512, RDM | DMX512, RDM |
| Controllable Sections | 1 | 1 | 1 |
| Power Connection | 3m cable input | 3m cable input | 3m cable input |
| Data Connection | 3m cable input /output | 3m cable input /output | 3m cable input /output |
| IP Rating | IP66 | IP66 | IP66 |
| Operation Temperature | -40°C~45°C (operation) -40°C~45°C (startup) | -40°C~45°C (operation) -40°C~45°C (startup) | -40°C~45°C (operation) -40°C~45°C (startup) |
| Housing Material | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum |
| Housing Color | White(optional: grey, black) | White(optional: grey, black) | White(optional: grey, black) |
| Dimensions | 731x252x536mm | 731x252x536mm | 731x252x536mm |
| Weight | 40KG | 40KG | 40KG |

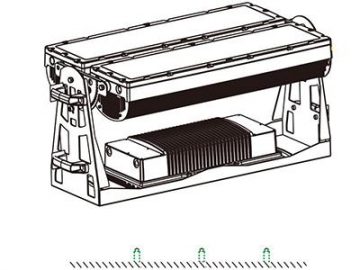

Dimensions
Illumination Contours

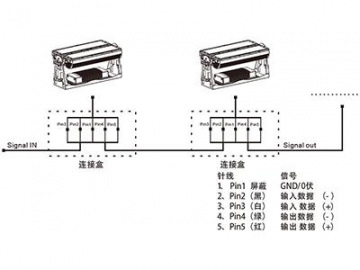

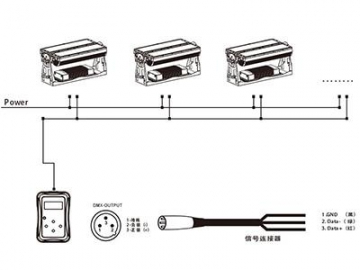

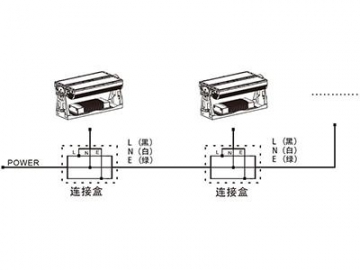

Installations
Optional Accessories
Anti-glare cover
