Architectural Lighting Cast Aluminum Fixture 38W LED Spotlight Code AM745T-XCT LED Lighting
Characteristics
- Single arm bracket, equipped with a hood, can be rotated and fixed according to the project requirements.
- Lightning protection design and high performance stability.
- AC100-277V wide voltage protection design, applicable to all countries.
- Various lens angles are optional and flexible for various project requirements.
Product Parameters
| Model | AM745T | AM745XCT |
| Input Voltage | AC100~277V | AC100~277V |
| Max. Power | 38W | 38W |
| Power Factor | >0.9 | >0.9 |
| Lumen | 1200lm | 909lm |
| Peak Beam Intensity | 14755cd(12°) | 12403cd(12°) |
| LED Quantity | 12pcs (4R+4G+4B) | 12pcs (3R+3G+3B+3C) |
| Optical Angle | 12°(5°, 25°, 45°) | 12°, 25° |
| DMX Dimming | 0-100% | 0-100% |
| RTCP | DMX512, RDM | DMX512, RDM |
| Controllable Sections | 1 | 1 |
| Power Connection | 3m cable input | 3m cable input |
| Data Connection | 3m cable input / output | 3m cable input / output |
| IP Rating | IP67 | IP67 |
| Operation Temperature | -40°C~45°C (operation) | -40°C~45°C (operation) |
| -20°C~45°C (startup) | -20°C~45°C (startup) | |
| Housing Material | Die-casting aluminum | Die-casting aluminum |
| Housing Color | White(optional: grey, black) | White(optional: grey, black) |
| Dimensions | 244X152X308mm | 244X152X308mm |
| Weight | 4.25KG | 4.25KG |

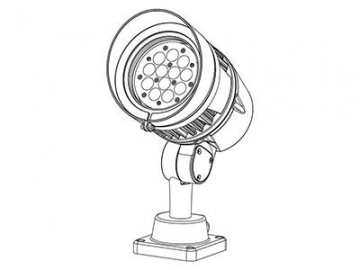

Dimensions
Illumination Contours

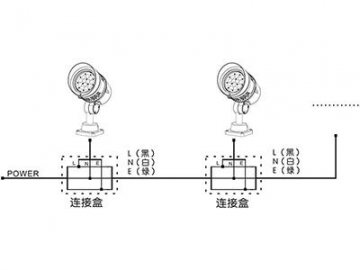

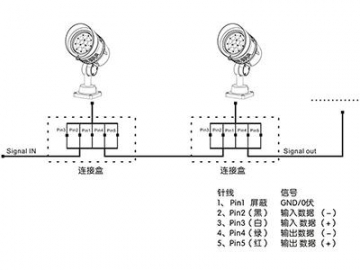

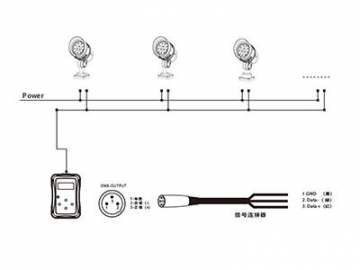

Installations
Optional Accessories
Anti-glare cover
