Architectural Lighting Cast Aluminum Fixture LED Floodlight Code AM723T-XWT LED Lighting
Characteristics
- 0-100% 16Bit dimmer, DIM4 dimmer technology.
- Flexible adjustment of lamp head.
- Lightning protection design and high performance stability.
- Equipped with wireless receiving card to provide wireless control schemes for various.
Product Parameters
| Model | AM723T | AM723XWT |
| Input Voltage | AC100~240V | AC100~240V |
| Max. Power | 260W | 260W |
| Power Factor | >0.9 | >0.9 |
| Lumen | 9020lm | 9500lm |
| Peak Beam Intensity | 286619(6°) | 261657cd(6°) |
| LED Quantity | 90pcs(30R+30G+30B) | 90pcs(24R+24G+24B+18W) |
| Optical Angle | 6°(12°, 25°, 45°, 40*12°) | 6°(12°, 25°, 45°, 40*12°) |
| DMX Dimming | 0-100% | 0-100% |
| RTCP | DM512, RDM | DM512, RDM |
| Controllable Sections | 1 | 1 |
| Power Connection | 3m cable input | 3m cable input |
| Data Connection | 3m cable input / output | 3m cable input / output |
| IP Rating | IP66 | IP66 |
| Operation Temperature | -40°C~45°C (operation) | -40°C~45°C (operation) |
| -40°C~45°C (startup) | -40°C~45°C (startup) | |
| Housing Material | Die-casting aluminum | Die-casting aluminum |
| Housing Color | White(optional: grey, black) | White(optional: grey, black) |
| Dimensions | 706x252x310mm | 706x252x310mm |
| Weight | 25KG | 25KG |

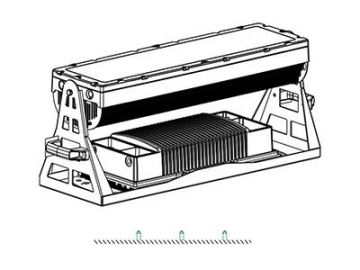

Dimensions
Illumination Contours

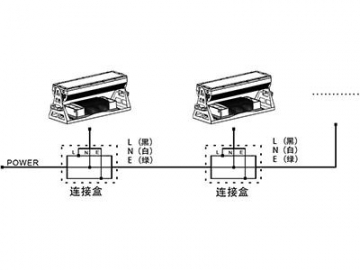

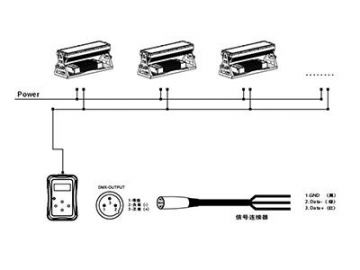

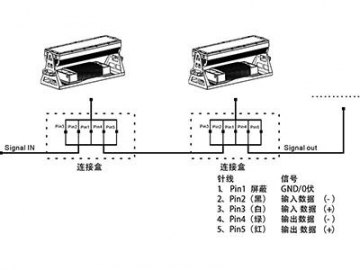

Installations
Optional Accessories
Anti-glare cover
