Architectural Lighting Cast Aluminum Fixture 38W LED Spotlight Code AM745T-XCT LED Lighting
Characteristics
- Single arm bracket, equipped with a hood, can be rotated and fixed according to the project requirements.
- Lightning protection design and high performance stability.
- Various lens angles are optional and flexible for various project requirements.
- AC100-277V wide voltage protection design, applicable to all countries.
Product Parameters
| Model | AM745XLET | AM745XAET | AM745XCET |
| Input Voltage | AC100~277V | AC100~277V | AC100~277V |
| Max. Power | 50W | 50W | 50W |
| Power Factor | >0.9 | >0.9 | >0.9 |
| Lumen | 1780lm | 1425lm | 1603lm |
| Peak Beam Intensity | 7575cd(30°) | 6060cd(30°) | 6818cd(30°) |
| LED Quantity | 4pcs RGBL | 4pcs RGBA | 4pcs RGBW |
| Optical Angle | 22° | 22° | 22° |
| DMX Dimming | 0-100% | 0-100% | 0-100% |
| RTCP | DMX512, RDM | DMX512, RDM | DMX512, RDM |
| Controllable Sections | 1 | 1 | 1 |
| Power Connection | 3m cable input | 3m cable input | 3m cable input |
| Data Connection | 3m cable input / output | 3m cable input / output | 3m cable input / output |
| IP Rating | IP67 | IP67 | IP67 |
| Operation Temperature | -40°C~45°C (operation) | -40°C~45°C (operation) | -40°C~45°C (operation) |
| -20°C~45°C (startup) | -20°C~45°C (startup) | -20°C~45°C (startup) | |
| Housing Material | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum |
| Housing Color | White(optional: grey, black) | White(optional: grey, black) | White(optional: grey, black) |
| Dimensions | 244x152x338mm | 244x152x338mm | 244x152x338mm |
| Weight | 4.2KG | 4.2KG | 4.2KG |

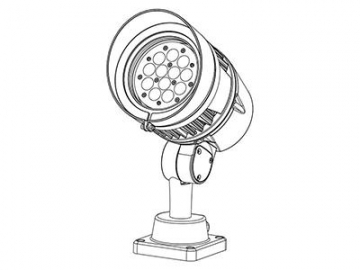

Dimensions
Illumination Contours

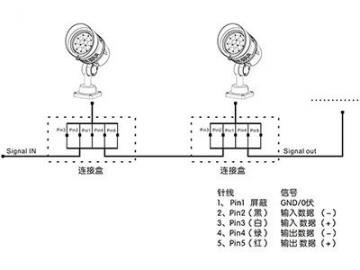

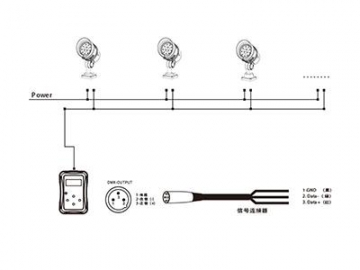

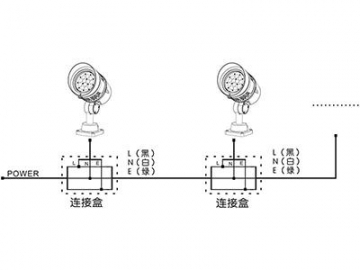

Installations
Optional Accessories
Anti-glare cover
