Architectural Lighting IP67 Dimmable LED Spot Light Code AM746SCT-SWT-CAT LED Lighting
Characteristics
- Lamp holder features infinite rotation 60°.
- Lightning protection design and high performance stability.
- AC100-277V wide voltage protection design, applicable to all countries.
- Lightning protection design and high performance stability.
Product Parameters
| Model | AM746SCT | AM746SWT | AM746CAT |
| Input Voltage | AC100~277V | AC100~277V | AC100~277V |
| Max. Power | 100W | 100W | 120W |
| Power Factor | >0.9 | >0.9 | >0.9 |
| Lumen | 5000lm | 4500lm | 6136lm |
| Peak Beam Intensity | 94707cd(12°) | 75596cd(12°) | 38750cd(25°) |
| LED Quantity | 36pcs cool white | 36pcs warm white | 36pcs amber+cool white |
| Optical Angle | 12°(5°、25°、45°) | 12°(5°、25°、45°) | 12°(5°、25°、45°) |
| DMX Dimming | 0-100% | 0-100% | 0-100% |
| RTCP | DMX512, RDM | DMX512, RDM | DMX512, RDM |
| Controllable Sections | 1 | 1 | 1 |
| Power Connection | 3m cable input | 3m cable input | 3m cable input |
| Data Connection | 3m cable input / output | 3m cable input / output | 3m cable input / output |
| IP Rating | IP67 | IP67 | IP67 |
| Operation Temperature | -40°C~45°C (operation) | -40°C~45°C (operation) | -40°C~45°C (operation) |
| -20°C~45°C (startup) | -20°C~45°C (startup) | -20°C~45°C (startup) | |
| Housing Material | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum |
| Housing Color | White(optional: grey, black) | White(optional: grey, black) | White(optional: grey, black) |
| Dimensions | 315x242x390mm | 315x242x390mm | 315x242x390mm |
| Weight | 8.1KG | 8.1KG | 8.1KG |

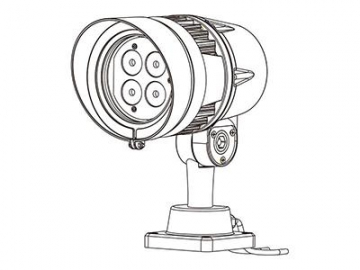

Dimensions
Illumination Contours

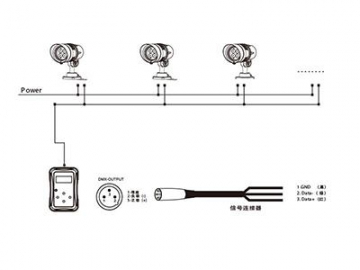

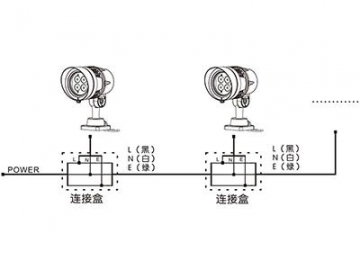

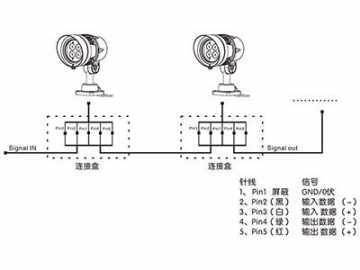

Installations
Optional Accessories
Anti-glare cover
