Architectural Lighting 150W Spot LED Light Code AM747SCT-SWT-CAT LED Lighting
Characteristics
- Lightning protection design and high performance stability.
- Lamp holder features infinite rotation 60 °, adjustable hood.
Product Parameters
| Model | AM747SCT | AM747SWT | AM747CAT |
| Input Voltage | AC100~277V | AC100~277V | AC100~277V |
| Max. Power | 150W | 150W | 150W |
| Power Factor | >0.9 | >0.9 | >0.9 |
| Lumen | 7790lm | 7440lm | 7200lm |
| Peak Beam Intensity | 150738cd(12°) | 146726cd(12°) | 58000cd(25°) |
| LED Quantity | 54pcs cool white | 54pcs warm white | 54pcs amber+cool white |
| Optical Angle | 12°(5°, 25°, 45°) | 12°(5°, 25°, 45°) | 25°(5°, 12°, 45°) |
| DMX Dimming | 0-100% | 0-100% | 0-100% |
| RTCP | DMX, RDM | DMX, RDM | DMX, RDM |
| Controllable Sections | 1 | 1 | 1 |
| Power Connection | 3m cable input | 3m cable input | 3m cable input |
| Data Connection | 3m cable input/output | 3m cable input/output | 3m cable input/output |
| IP Rating | IP66 | IP66 | IP66 |
| Operation Temperature | -40°C~45°C (operation) | -40°C~45°C (operation) | -40°C~45°C (operation) |
| -20°C~45°C (startup) | -20°C~45°C (startup) | -20°C~45°C (startup) | |
| Housing Material | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum |
| Housing Color | White(optional: grey, black) | White(optional: grey, black) | White(optional: grey, black) |
| Dimensions | 354x283x450mm | 354x283x450mm | 354x283x450mm |
| Weight | 11KG | 11KG | 11KG |

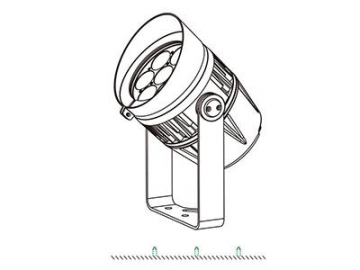

Dimensions
Illumination Contours

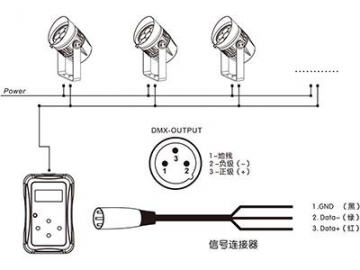

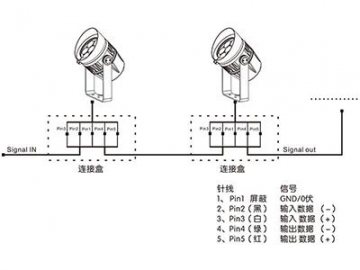

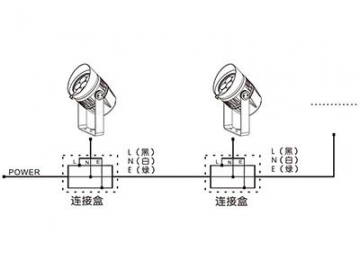

Installations
Optional Accessories
Anti-glare cover
