Architectural Lighting Dimmable LED Floodlight Code AM732SCT-SWT-CAT LED Light
Characteristics
- Equipped with advanced intelligent color management system CCS, can achieve perfect color effect.
- Integrate RDM functions to facilitate early debugging and late maintenance of engineering installation and reduce costs.
- High-power ultra-high brightness LED, can achieve ultra-long distance and ultra-long distance.
Product Parameters
| Model | AM732SCT | AM732SWT | AM732CAT |
| Input Voltage | AC100~240V | AC100~240V | AC100~240V |
| Max. Power | 700W | 700W | 700W |
| Power Factor | >0.9 | >0.9 | >0.9 |
| Lumen | 35621lm | 33839lm | 32058lm |
| Peak Beam Intensity | 2217600cd(4°) | 1884960cd(4°) | 2051280cd(4°) |
| LED Quantity | 72pcs cool white | 72pcs warm white | 72pcs amber + cool white |
| Optical Angle | 4°, 10°, 20° | 4°, 10°, 20° | 14° |
| DMX Dimming | 0-100% | 0-100% | 0-100% |
| RTCP | DM512, RDM | DM512, RDM | DM512, RDM |
| Controllable Sections | 1 | 1 | 1 |
| Power Connection | 3m cable input | 3m cable input | 3m cable input |
| Data Connection | 3m cable input / output | 3m cable input / output | 3m cable input / output |
| IP Rating | IP66 | IP66 | IP66 |
| Operation Temperature | -40°C~45°C (operation) | -40°C~45°C (operation) | -40°C~45°C (operation) |
| -40°C~45°C (startup) | -40°C~45°C (startup) | -40°C~45°C (startup) | |
| Housing Material | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum |
| Housing Color | White(optional: grey, black) | White(optional: grey, black) | White(optional: grey, black) |
| Dimensions | 871x252x569mm | 871x252x569mm | 871x252x569mm |
| Weight | 45.3KG | 45.3KG | 45.3KG |
Dimensions
Illumination Contours

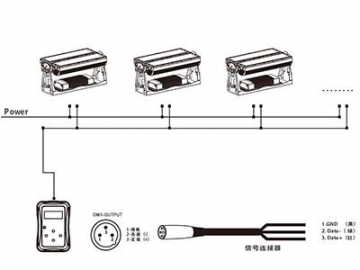

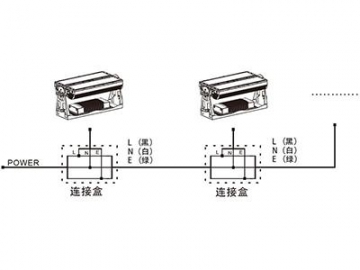

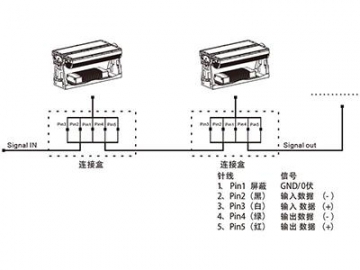

Installations
Optional Accessories
Anti-glare cover
