Architectural Lighting High Power 300W LED Spot Light Code AM749SCT-SWT-CAT LED Lighting
Characteristics
- 0-100% 16Bit dimmer, DIM4 dimmer technology.
- Lightning protection design and high performance stability.
- Integrate RDM functions to facilitate early debugging and late maintenance of engineering installation and reduce costs.
- Automatic addressing function and can automatically allocate address code.
Product Parameters
| Model | AM749SCT | AM749SWT | AM749CAT |
| Input Voltage | AC100~240V | AC100~240V | AC100~240V |
| Max. Power | 300W | 300W | 300W |
| Power Factor | >0.9 | >0.9 | >0.9 |
| Lumen | 11874lm | 11279lm | 10686lm |
| Peak Beam Intensity | 732510cd(3.5°) | 622634cd(3.5°) | 677571cd(3.5°) |
| LED Quantity | 24pcs cool white | 24pcs warm white | 24pcs Amber + cool white |
| Optical Angle | 3.5°, 10°, 20° | 3.5°, 10°, 20° | 14° |
| DMX Dimming | 0-100% | 0-100% | 0-100% |
| RTCP | DMX512, RDM | DMX512, RDM | DMX512, RDM |
| Controllable Sections | 1 | 1 | 1 |
| Power Connection | 3m cable input | 3m cable input | 3m cable input |
| Data Connection | 3m cable input / output | 3m cable input / output | 3m cable input / output |
| IP Rating | IP66 | IP66 | IP66 |
| Operation Temperature | -40°C~45°C (operation) | -40°C~45°C (operation) | -40°C~45°C (operation) |
| -20°C~45°C (startup) | -20°C~45°C (startup) | -20°C~45°C (startup) | |
| Housing Material | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum |
| Housing Color | White(optional: grey, black) | White(optional: grey, black) | White(optional: grey, black) |
| Dimensions | 423x284x443mm | 423x284x443mm | 423x284x443mm |
| Weight | 17.5KG | 17.5KG | 17.5KG |

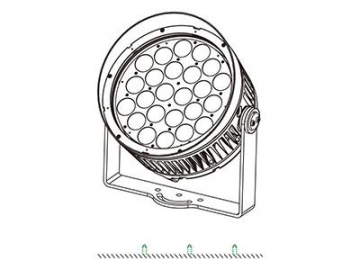

Dimensions
Illumination Contours

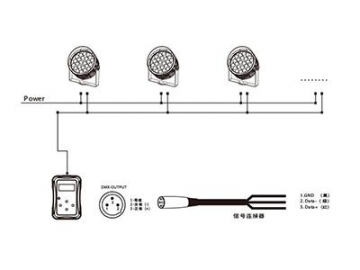

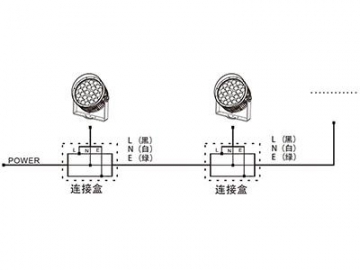

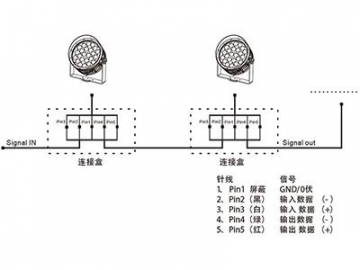

Installations
Optional Accessories
Anti-glare cover
