Architectural Lighting 24 LEDs Spot LED Light Code AM749XLET-XAET-XCET LED Lighting
Characteristics
- Equipped with advanced intelligent color management system CCS, can achieve perfect color effect.
- Adopt the new four-in-one LEDs and combine with the scientific secondary optical design to realize perfect lighting effect.
- Lightning protection design and high performance stability.
- 0-100% 16Bit dimmer, DIM4 dimmer technology.
- Automatic addressing function and can automatically allocate address code.
- Integrate RDM functions to facilitate early debugging and late maintenance of engineering installation and reduce costs.
Product Parameters
| Model | AM749XLET | AM749XAET | AM749XCET |
| Input Voltage | AC100~277V | AC100~277V | AC100~277V |
| Max. Power | 300W | 300W | 300W |
| Power Factor | >0.9 | >0.9 | >0.9 |
| Lumen | 11428lm | 11635lm | 12768lm |
| Peak Beam Intensity | 164506cd(14°) | 173025cd(14°) | 191500cd(14°) |
| LED Quantity | 24pcs RGBL | 24pcs RGBA | 24pcs RGBW |
| Optical Angle | 14°, 25° | 14°, 25° | 14°, 25° |
| DMX Dimming | 0-100% | 0-100% | 0-100% |
| RTCP | DMX512, RDM | DMX512, RDM | DMX512, RDM |
| Controllable Sections | 1 | 1 | 1 |
| Power Connection | 3m cable input | 3m cable input | 3m cable input |
| Data Connection | 3m cable input / output | 3m cable input / output | 3m cable input / output |
| IP Rating | IP66 | IP66 | IP66 |
| Operation Temperature | -40°C~45°C (operation) | -40°C~45°C (operation) | -40°C~45°C (operation) |
| -20°C~45°C (startup) | -20°C~45°C (startup) | -20°C~45°C (startup) | |
| Housing Material | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum |
| Housing Color | White(optional: grey, black) | White(optional: grey, black) | White(optional: grey, black) |
| Dimensions | 423x284x443mm | 423x284x443mm | 423x284x443mm |
| Weight | 17.5KG | 17.5KG | 17.5KG |

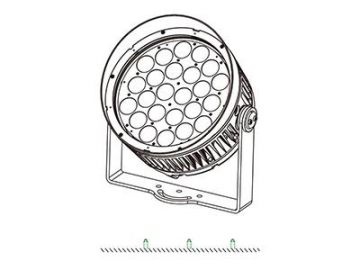

Dimensions
Illumination Contours

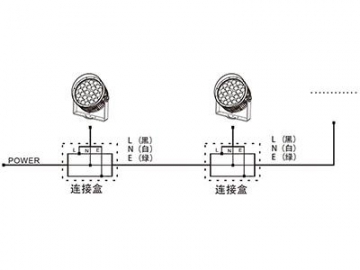

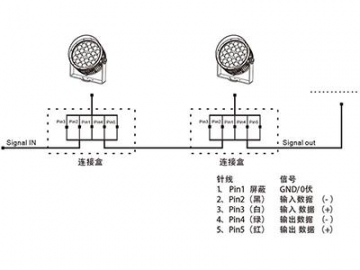

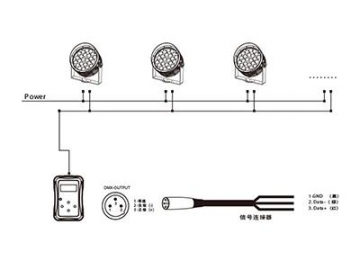

Installations
Optional Accessories
Anti-glare cover
