Architectural Lighting 24 LEDs Spot LED Light Code AM751XLET-XAET-XCET LED Light
Characteristics
- 0-100% 16Bit dimmer, DIM4 dimmer technology.
- Automatic addressing function and can automatically allocate address code.
- Integrate RDM functions to facilitate early debugging and late maintenance of engineering installation and reduce costs.
Product Parameters
| Model | AM751XLET | AM751XAET | AM751XCET |
| Input Voltage | AC100~240V | AC100~240V | AC100~240V |
| Max. Power | 25W | 25W | 25W |
| Power Factor | >0.9 | >0.9 | >0.9 |
| Lumen | 840lm | 750lm | 800lm |
| Peak Beam Intensity | 3925cd(20°) | 3000cd(20°) | 3250cd(20°) |
| LED Quantity | 2pcs RGBL | 2pcs RGBA | 2pcs RGBW |
| Optical Angle | 20° | 20° | 20° |
| DMX Dimming | 0-100% | 0-100% | 0-100% |
| RTCP | DMX512, RDM | DMX512, RDM | DMX512, RDM |
| Controllable Sections | 1 | 1 | 1 |
| Power Connection | 3m cable input | 3m cable input | 3m cable input |
| Data Connection | 3m cable input / output | 3m cable input / output | 3m cable input / output |
| IP Rating | IP66 | IP66 | IP66 |
| Operation Temperature | -40°C~45°C (operation) | -40°C~45°C (operation) | -40°C~45°C (operation) |
| -20°C~45°C (startup) | -20°C~45°C (startup) | -20°C~45°C (startup) | |
| Housing Material | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum |
| Housing Color | White(optional: grey, black) | White(optional: grey, black) | White(optional: grey, black) |
| Dimensions | 170x176x164mm | 170x176x164mm | 170x176x164mm |
| Weight | 1.7KG | 1.7KG | 1.7KG |
Dimensions
Illumination Contours

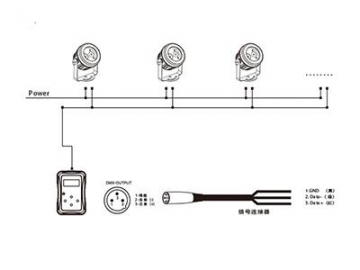

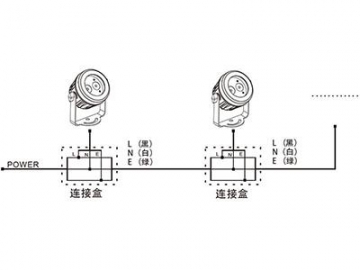

Installations
Optional Accessories
Anti-glare cover
