Architectural Lighting 24 LEDs 70W LED Spot Light Code AM727SCT-SWT-CAT LED Light
Characteristics
- 0-100% 16Bit dimmer, DIM4 dimmer technology.
- Lightning protection design and high performance stability.
- U type bracket, the base can rotate, the installation is more convenient.
- 1800-6500k color temperature optional, intelligent dimming.
- Equipped with intelligent RDM, two-way feedback function, real-time feedback of lamp failure and usage.
Product Parameters
| Model | AM727SCT | AM727SWT | AM727CAT |
| Input Voltage | AC100~240V | AC100~240V | AC100~240V |
| Max. Power | 180W | 180W | 180W |
| Power Factor | >0.9 | >0.9 | >0.9 |
| Lumen | 9856lm | 9363lm | 8870lm |
| Peak Beam Intensity | 108306cd(15°) | 102890cd(15°) | 97475cd(15°) |
| LED Quantity | 12pcs cool white | 12pcs warm white | 12pcs amber+cool white |
| Optical Angle | 15° | 15° | 15° |
| DMX Dimming | 0-100% | 0-100% | 0-100% |
| RTCP | DMX512, RDM | DMX512, RDM | DMX512, RDM |
| Controllable Sections | 1 | 1 | 1 |
| Power Connection | 3m cable input | 3m cable input | 3m cable input |
| Data Connection | 3m cable input / output | 3m cable input / output | 3m cable input / output |
| IP Rating | IP66 | IP66 | IP66 |
| Operation Temperature | -40°C~45°C (operation) | -40°C~45°C (operation) | -40°C~45°C (operation) |
| -20°C~45°C (startup) | -20°C~45°C (startup) | -20°C~45°C (startup) | |
| Housing Material | Die-casting aluminum | Die-casting aluminum | Die-casting aluminum |
| Housing Color | White(optional: grey, black) | White(optional: grey, black) | White(optional: grey, black) |
| Dimensions | 530x200x313mm | 530x200x313mm | 530x200x313mm |
| Weight | 12KG | 12KG | 12KG |

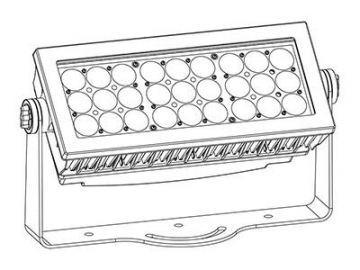

Dimensions
Illumination Contours

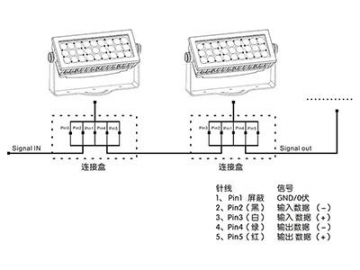

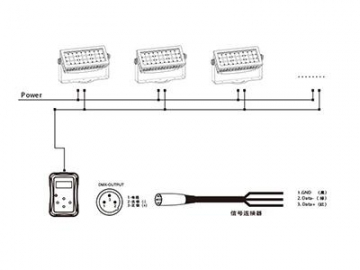

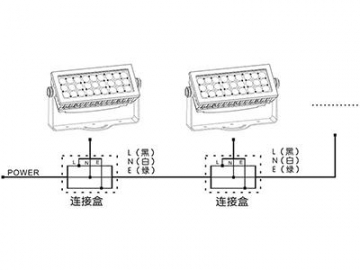

Installations
Optional Accessories
Anti-glare cover
