Architectural Lighting 24 LEDs 70W LED Spot Light Code AM725T-XCT LED Lighting
Characteristics
- Integrated design, compact structure, good waterproof performance.
- Lightning protection design and high performance stability.
- 2700-6500k color temperature optional, intelligent dimming.
- Various lens angles are optional and flexible for various project requirements.
- U type bracket, the base can rotate, the installation is more convenient.
Product Parameters
| Model | AM725T | AM725XCT |
| Input Voltage | AC100~277V | AC100~277V |
| Max. Power | 70W | 70W |
| Power Factor | >0.9 | >0.9 |
| Lumen | 2438lm | 2381lm |
| Peak Beam Intensity | 30093cd(12°) | 45229cd(12°) |
| LED Quantity | 24pcs(8R+8G+8B) | 24pcs(6R+6G+6B+6W) |
| Optical Angle | 12°(5°, 25°, 45°) | 12°(5°, 25°, 45°) |
| DMX Dimming | 0-100% | 0-100% |
| RTCP | DMX512, RDM | DMX512, RDM |
| Controllable Sections | 1 | 1 |
| Power Connection | 3m cable input | 3m cable input |
| Data Connection | 3m cable input / output | 3m cable input / output |
| IP Rating | IP66 | IP66 |
| Operation Temperature | -40°C~45°C (operation) | -40°C~45°C (operation) |
| -20°C~45°C (startup) | -20°C~45°C (startup) | |
| Housing Material | Die-casting aluminum | Die-casting aluminum |
| Housing Color | White(optional: grey, black) | White(optional: grey, black) |
| Dimensions | 307x103x301mm | 307x103x301mm |
| Weight | 6.6KG | 6.6KG |

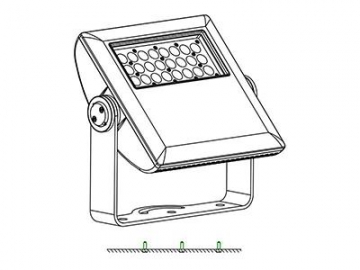

Dimensions
Illumination Contours

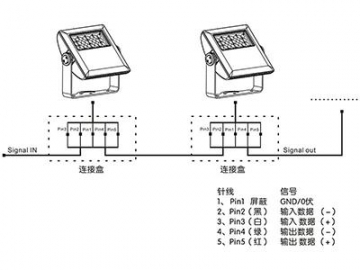

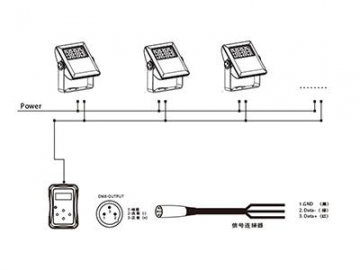

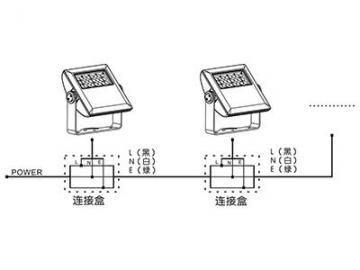

Installations
Optional Accessories
Anti-glare cover
