COB LED Flood Light

: http://mf-ledlights.com/2-8-led-flood-light.html

This series of COB LED flood light from SHCET is IP66 rated, suitable for outdoor use, such as illuminating architectural elements or walkways. This LED flood light features high lumen COB LED chips to provide reliable and even light, with a die-casting aluminum to ensure a durable structure.

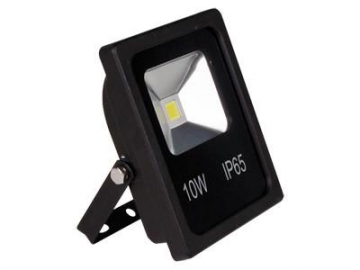

CET-108B-10W COB LED Flood Light
Model: CET-108B-10W
Power: 10W
Lamp Size(mm): 124x110x37mm
IP: IP66
LED Chips Quantity(pcs): 1x10W COB
Lamp Flux(LM): 1100LM

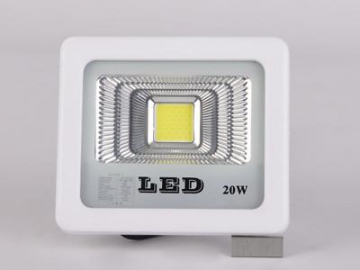

CET-108B-20W COB LED Flood Light
Model: CET-108B-20W
Power: 20W
Lamp Size(mm): 146x126x37mm
IP: IP66
LED Chips Quantity(pcs): 1x20W COB
Lamp Flux(LM): 2200LM

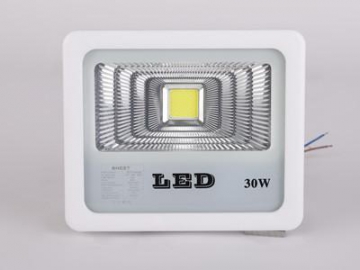

CET-108B-30W COB LED Flood Light
Model: CET-108B-30W
Power: 30W
Lamp Size(mm): 195x165x40mm
IP: IP66
LED Chips Quantity(pcs): 1x30W COB
Lamp Flux(LM): 3300LM

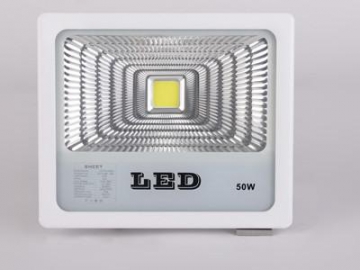

CET-108B-50W COB LED Flood Light
Model: CET-108B-50W
Power: 50W
Lamp Size(mm):230x195x56mm
IP: IP66
LED Chips Quantity(pcs): 1x50W COB
Lamp Flux(LM): 5500LM

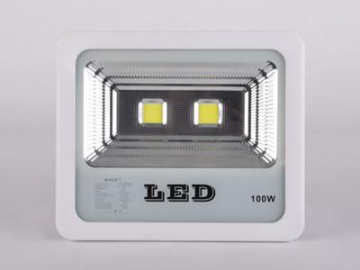

CET-108B-100W COB LED Flood Light
Model: CET-108B-100W
Power: 100W
Lamp Size(mm): 297x250x57mm
IP: IP66
LED Chips Quantity(pcs): 2x50W COB
Lamp Flux(LM): 11000LM

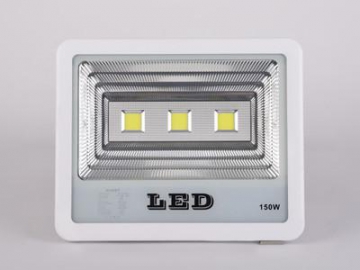

CET-108B-150W COB LED Flood Light
Model: CET-108B-150W
Power: 150W
Lamp Size(mm): 355x290x57mm
IP: IP66
LED Chips Quantity(pcs): 3x50W COB
Lamp Flux(LM): 16500LM

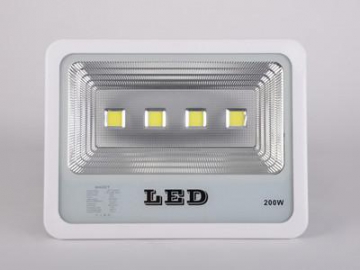

CET-108B-200W COB LED Flood Light
Model: CET-108B-200W
Power: 200W
Lamp Size(mm): 428x328x65mm
IP: IP66
LED Chips Quantity(pcs): 4x50W COB
Lamp Flux(LM): 22000LM

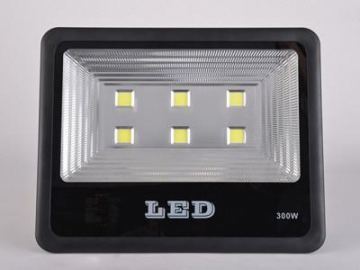

CET-108B-300W COB LED Flood Light
Model: CET-108B-300W
Power: 300W
Lamp Size(mm): 500x400x65mm
IP: IP66
LED Chips Quantity(pcs): 6x50W COB
Lamp Flux(LM): 33000LM

Details

Features

The flood lights use an IC (integrated circuit) constant current waterproof driver, and users can choose to equip the lights with dimming and timing functions. Each LED light features a stable current and a surge protection of up to 6,000V, all to ensure a safe usage.

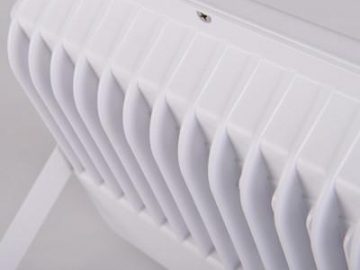

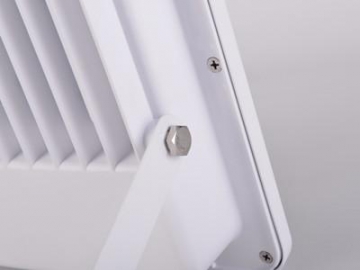

The LED light features an integrated die cast aluminum housing and light source design, making installation easy.

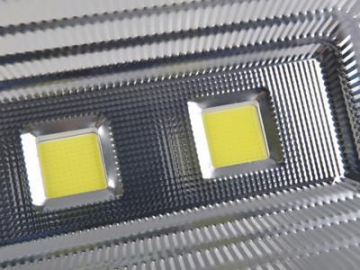

The light source is an LED chip with a high luminance, and features a low energy consumption and a low heat, with a service life of up to 50,000 hours.

Detailed Parameters

Lamp Material	Die Cast Aluminum + Glass
Beam Angle	120°
IP Rating	IP65 or IP66
Surge Protection	4-6KV
LED Chips	2835SMD 0.5W or COB
CRI	70-75 or 80-85
Power Factor	0.6-0.7 or 0.9-0.97
Input Voltage	AC85-277V or AC165-265V
Body Color	White, Black, customized
Color Temperature	3000-3500K, 4000-4500K, 5000-5500K, 6000-6500K;
Diffuser	Aluminum or PC

Note: The diver has dimmable and non-dimmable types.
