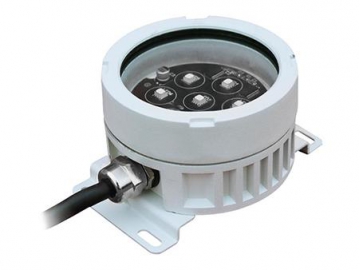

Architectural Lighting Outdoor 5W LED Pixel Light Code AI792ET LED Lighting

Architectural Lighting Outdoor 5W LED Pixel Light  Code AI792ET LED Lighting
Architectural Lighting Outdoor 5W LED Pixel Light  Code AI792ET LED Lighting
Architectural Lighting Outdoor 5W LED Pixel Light  Code AI792ET LED Lighting
Architectural Lighting Outdoor 5W LED Pixel Light  Code AI792ET LED Lighting
Architectural Lighting Outdoor 5W LED Pixel Light  Code AI792ET LED Lighting
Architectural Lighting Outdoor 5W LED Pixel Light  Code AI792ET LED Lighting
Architectural Lighting Outdoor 5W LED Pixel Light  Code AI792ET LED Lighting
Characteristics
  • The lamp features light weight and low power consumption, and can achieve a variety of colorful pixel effect.
  • Integrate RDM functions to facilitate early debugging and late maintenance of engineering installation and reduce costs.
  • 0-100% 16Bit dimmer, DIM4 dimmer technology.
Product Parameters
Model AI792ET
Input Voltage DC24V
Max. Power 5W
Power Factor >0.9
Lumen 42.55lm
Peak Beam Intensity 87cd(30°)
LED Quantity 7pcs RGB
Optical Angle 30°, 45°, 60°, 30°*45°
DMX Dimming 0-100%
RTCP DMX512, RDM
Controllable Sections 1
Power Connection Integrated power and signal cable
Data Connection
IP Rating IP67
Operation Temperature -40°C~45°C (Operation)
-20°C~45°C (startup)
Housing Material Die-casting aluminum
Housing Color Grey(optional: white, black)
Dimensions 111X88X68mm
Weight 0.4KG

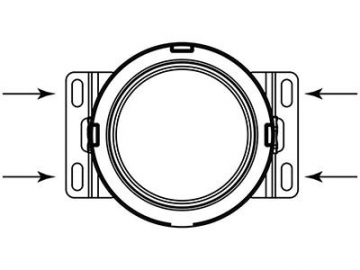

Dimensions
Illumination Contours

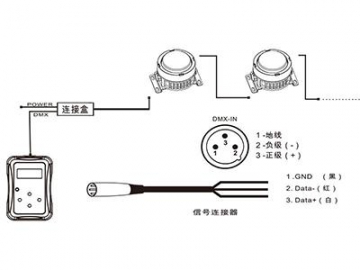

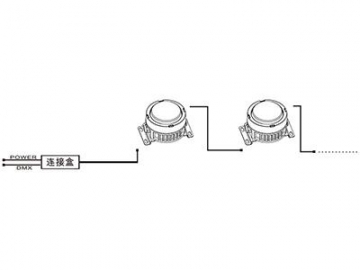

Installations
Optional Accessories
PC mask, tempered glass
