Architectural Lighting LED Projector Light Code AG750SCT LED Lighting
Characteristics
- RDM bidirectional feedback function.
- Intelligent electronic zoom system.
- Built-in rotatable Gobo wheel, dynamic effects wheel, color wheel, prism, atomizing filter.
Product Parameters
| Model | AG750SCT |
| Light Source | 350W(cool white LED module) |
| Optical Angle | 8-40°(electronic zoom) |
| Input Voltage | AC100~240V |
| Rated power | 350W |
| Dimming | 0-100%16Bit dimming |
| Cooling system | Natural radiation |
| RTCP | DMX512, RDM |
| Functional effect | On board Control, 0-25Hz Strobe Sustom Mode |
| Channel mode | STANDARD(20CHS), BASIC(17CHS) |
| Rotating Gobo | 7 gobos + white, gobo-flow effect, gobo shake, bi-directional rotation |
| Color | one color wheel: 7 color slots + white, rainbow-flow effect |
| CMY | CMY sysem, built-in Macro |
| Power Connection | 3m cable input |
| Data Connection | 3m cable input / output |
| Waterproof rate | IP66 |
| Temperature of working environment | -20~45°C |
| Housing Material | Die-casting aluminum |
| Housing Color | white(optional: grey, black) |
| Dimensions | 605x343x250mm |
| Weight | 23kg |

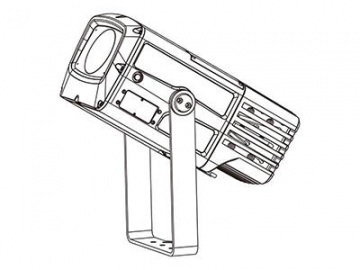

Dimensions
Illumination Contours

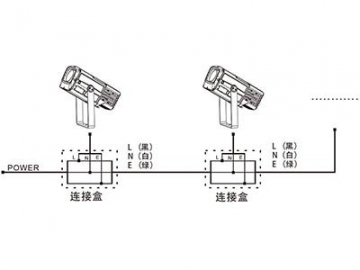

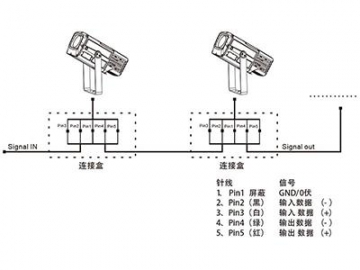

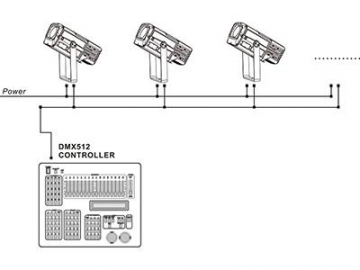

Installations
