Architectural Lighting Waterproof LED Light Projector Code AG650XCET-XALT LED Lighting
Characteristics
- Integrated cutting system.
- RDM bidirectional feedback function.
- Intelligent electronic zoom system.
- Built-in bi-directionnal rota table gobo wheel.
Product Parameters
| Model | AG650XALT | AG650XCET |
| Light Source | 250W(RGBAL module) | 250W(RGBW module) |
| Optical Angle | 15-30°(electronic zoom) | 15-30°(electronic zoom) |
| Input Voltage | AC100~240V | AC100~240V |
| Rated power | 240W | 240W |
| Dimming | 0-100%16Bit dimming | 0-100%16Bit dimming |
| Cooling system | Air cooling and natural radiation | Air cooling and natural radiation |
| RTCP | DMX512, RDM | DMX512, RDM |
| Functional effect | Display panel-controlled static state and 10-25Hz strobe effect | Display panel-controlled static state and 0-25Hz strobe effect |
| Channel mode | SIMPLE(5CHS),MODE16BIT(8CHS) | EXTENDED/6CHS,STANDARD/5CS,SLMPLE/3CHS |
| Rotating Gobo | 1 Bi-directional Rotating Gobo | 1 Bi-directional Rotating Gobo |
| Focus | Motorized linear focus | Motorized linear focus |
| PowerConnection | 3m cable input | 3m cable input |
| Data Connection | 3m cable input / output | 3m cable input / output |
| Waterproof rate | IP66 | IP66 |
| Temperature of working environment | -20~45°C | -20~45°C |
| Housing Material | Die-casting aluminum | Die-casting aluminum |
| Housing Color | White(optional: grey, black) | White(optional: grey, black) |
| Dimensions | 648x344x273mm | 648x344x273mm |
| Weight | 15kg | 15kg |

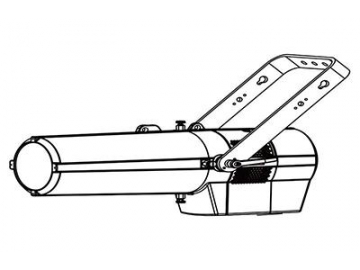

Dimensions
Illumination Contours

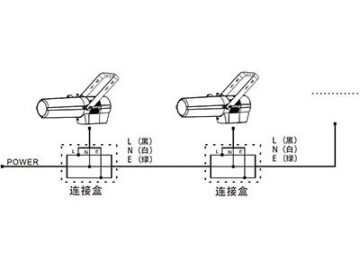

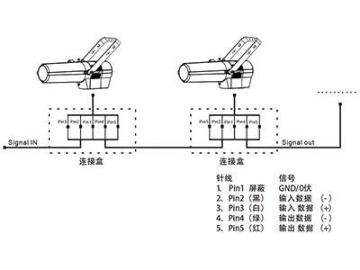

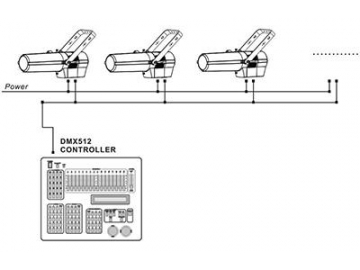

Installations
