Architectural Lighting Waterproof LED Projector Light Code AG650SCT-SWT LED Lighting
Characteristics
- Integrated cutting system.
- RDM bidirectional feedback function.
- Intelligent electronic zoom system.
- Built-in bi-directionnal rota table gobo wheel.
Product Parameters
| Model | AG650SCT | AG650SWT |
| Light Source | 250W cool white | 250W warm white |
| Optical Angle | 15-30°(electronic zoom) | 15-30°(electronic zoom) |
| Input Voltage | AC100~240V | AC100~240V |
| Rated power | 240W | 240W |
| Dimming | 0-100%16Bit dimming | 0-100%16Bit dimming |
| Cooling system | Air cooling and natural radiation | Air cooling and natural radiation |
| RTCP | DMX512, RDM | DMX512, RDM |
| Functional effect | Display panel-controlled static state and 0-25Hz strobe effect | Display panel-controlled static state and 0-25Hz strobe effect |
| Channel mode | SIMPLE(5CHS), MODE16BIT(7CHS) | SIMPLE(5CHS), MODE16BIT(7CHS) |
| Focus | Motorized linear focus | Motorized linear focus |
| Power Connection | 3m cable input | 3m cable input |
| Data Connection | 3m cable input / output | 3m cable input / output |
| Waterproof rate | IP65 | IP65 |
| Temperature of working environment | -20~45°C | -20~45°C |
| Housing Material | Die-casting aluminum | Die-casting aluminum |
| Housing Color | White(optional: grey, black) | White(optional: grey, black) |
| Dimensions | 648x344x273mm | 648x344x273mm |
| Weight | 16kg | 16kg |

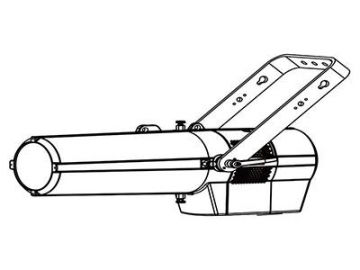

Dimensions
Illumination Contours

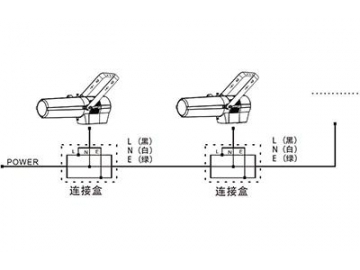

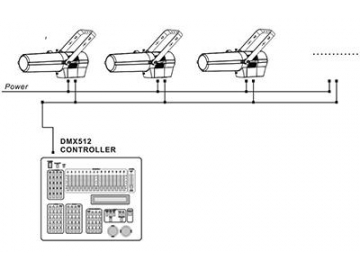

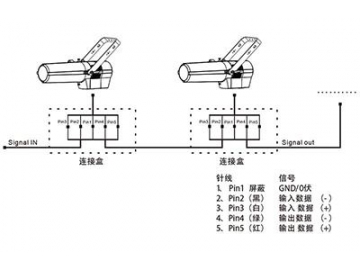

Installations
