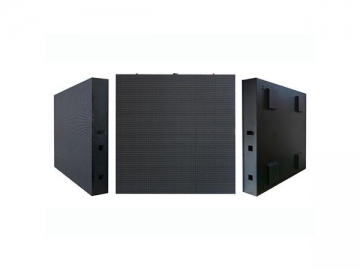

Front Maintenance LED Display
A conventional LED screen is installed with a steel structure to maintain the LED screen. A channel is left behind the LED screen to facilitate the maintenance of the LED screen. However, for some projects, it is not convenient to maintain the LED screen from the back due to the installation conditions. In this case, we recommend that customers use front maintenance LED display. The front maintenance LED display cabinet can be opened from the front without the need for a maintenance channel behind the screen, so maintenance is more convenient and installation is not restricted. Haian can provide front maintenance LED display with pixel pitch from 3mm to 20mm, which customers can choose according to their actual needs. Our front maintenance LED display is manufactured using the industry's most advanced technology and is extremely waterproof and dustproof.
- The front flip LED signage has a brightness of more than 6000 nits, so it is clearly visible under the sun. And the brightness can be automatically adjusted according to the ambient light, which won’t cause light pollution, and won’t affect the advertising effect.
- Applying high-quality LED lamp beads and 1.6mm thick PCB board, the module lifetime is more durable.
- High refresh rate, no water ripples on the display. The picture is clear and supports 4K playback.
- The protection rate is IP65, so the LED display can adapt to a variety of severe weather and is suitable for long-term outdoor use.
- The stripe design of the mask has been carefully calculated, which greatly reduces the trouble caused by the reflection of ambient light on the LED light.
- If the distance between the control room and the LED display is far away, the program can be updated by wireless remote control to control the LED display anytime and anywhere.
| Model | P3 SMD | P4 SMD | P5 SMD | P6 SMD | P8 SMD | P10 SMD | P10 DIP | P12 DIP | P16 DIP | P20 DIP |
| Pixel Pitch | 3mm | 4mm | 5mm | 6mm | 8mm | 10mm | 10mm | 12mm | 16mm | 20mm |
| Pixel Configuration | SMD 1R1G1B | SMD 1R1G1B | SMD 1R1G1B | SMD 1R1G1B | SMD 1R1G1B | SMD 1R1G1B | DIP 1R1G1B | DIP 1R1G1B | DIP 1R1G1B | DIP 1R1G1B |
| LED Type | 1921 | 1921 | 2727 | 3535 | 3535 | 3535 | 346 | 346 | 346 | 346 |
| Pixel Per SQM | 111,111 dots | 62,500 dots | 40,000 dots | 27,777 dots | 15,625 dots | 10,000 dots | 10,000 dots | 6,944 dots | 3,906 dots | 2,500 dots |
| Module Size | 192x192mm | 256x128mm | 160x160mm | 192x192mm | 256x128mm | 320x160mm | 160x160mm | 192x192mm | 256x256mm | 320x160mm |
| Module Resolution | 64x64 | 64x32 | 32x32 | 32x32 | 32x16 | 32x16 | 16x16 | 16x16 | 16x16 | 16x8 |
| Brightness | ≥6000 cd/m2 | ≥7000 cd/m2 | ≥6000 cd/m2 | ≥6500 cd/m2 | ≥6500 cd/m2 | ≥7000 cd/m2 | ≥8000 cd/m2 | ≥6000 cd/m2 | ≥9000 cd/m2 | ≥6000 cd/m2 |
| Viewing Angle | 120 / 120° | 120 / 120° | 120 / 120° | 120 / 120° | 120 / 120° | 120 / 120° | 120 / 65° | 120 / 65° | 120 / 65° | 120 / 65 |
| Driving Method | 1/16 | 1/8 | 1/8 | 1/8 | 1/4 | 1/2 | 1/4 | 1/4 | Static | Static |
| Gray Scale | 65536 | 65536 | 65536 | 65536 | 65536 | 65536 | 65536 | 65536 | 65536 | 65536 |
| Refresh Rate | 1920 Hz | 1920 Hz | 1920 Hz | 1920 Hz | 1920 Hz | 1920 Hz | 1920 Hz | 1920 Hz | 1920 Hz | 1920 Hz |
| Input Voltage (AC) | 100v - 240v | 100v - 240v | 100v - 240v | 100v - 240v | 100v - 240v | 100v - 240v | 100v - 240v | 100v - 240v | 100v - 240v | 100v - 240v |
| Frame Frequency | 50 or 60 Hz | 50 or 60 Hz | 50 or 60 Hz | 50 or 60 Hz | 50 or 60 Hz | 50 or 60 Hz | 50 or 60 Hz | 50 or 60 Hz | 50 or 60 Hz | 50 or 60 Hz |
| LED Blind Spot Rate | 1/10,000 | 1/10,000 | 1/10,000 | 1/10,000 | 1/10,000 | 1/10,000 | 1/10,000 | 1/10,000 | 1/10,000 | 1/10,000 |
| Lifetime | 100,000h | 100,000h | 100,000h | 100,000h | 100,000h | 100,000h | 100,000h | 100,000h | 100,000h | 100,000h |
| Operating Temperature | -20 ~ 60 ℃ | -20 ~ 60 ℃ | -20 ~ 60 ℃ | -20 ~ 60 ℃ | -20 ~ 60 ℃ | -20 ~ 60 ℃ | -20 ~ 60 ℃ | -20 ~ 60 ℃ | -20 ~ 60 ℃ | -20 ~ 60 ℃ |
| Operating Humidity | 10% ~ 90% | 10% ~ 90% | 10% ~ 90% | 10% ~ 90% | 10% ~ 90% | 10% ~ 90% | 10% ~ 90% | 10% ~ 90% | 10% ~ 90% | 10% ~ 90% |
| Cabinet Material | Iron/Aluminum | Iron/Aluminum | Iron/Aluminum | Iron/Aluminum | Iron/Aluminum | Iron/Aluminum | Iron/Aluminum | Iron/Aluminum | Iron/Aluminum | Iron/Aluminum |
| Protection Rate | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Warranty | 3 years | 3 years | 3 years | 3 years | 3 years | 3 years | 3 years | 3 years | 3 years | 3 years |
