Description

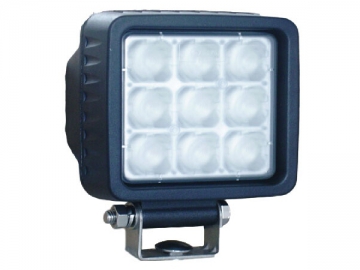

Designed with patented technology, CATA's 4x4 series LED work lamps feature a higher efficiency and energy conservation than traditional LEDs with TIR lenses. A precision die cast aluminum base ensures an excellent heat dissipation, and a longer service life.

Product selection:
4Q4
4Q4

    Specification:
    Operating Voltage: DC10~33V, DC30~50V
    Operating Temperature: -40℃~ 80℃
    Light Source: 9×1~3W high efficiency LEDs
    Color Temperature: warm white: ~3000K; natural white: 4000~4500K; pure white: ~6000K
    Luminous Flux: ~1000lm

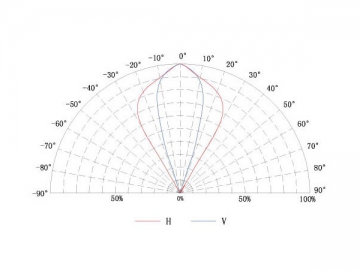

    Light Emitting Angle: H40°/V30°
    Current: 1.3Amps @ DC12V, 0.7Amps @ DC24V
    Power: 15W (max.)
    Lens: UV resistant PC lens
    Housing: Die-casting aluminum housing with surface sprayed
    Accessories: stainless steel bracket bolts screws
    IP 67,CE Approved

    4Q4-SP
    4Q4-SP

      Specification:
      Operating Voltage: DC10~33V, DC30~50V
      Operating Temperature: -40℃~ 80℃
      Light Source: 9×1~3W high efficiency LEDs
      Color Temperature: warm white: ~3000K; natural white: 4000~4500K; pure white: ~6000K
      Luminous Flux: ~1000lm
      Light Emitting Angle: ~5°
      Current: 1.3Amps @ DC12V, 0.7Amps @ DC24V
      Power: 15W (max.)
      Lens: UV resistant PC lens
      Housing: Die-casting aluminum housing with surface sprayed
      Accessories: stainless steel bracket bolts screws
      IP 67,CE Approved

      4Q4-M
      4Q4-M

        Specification:
        Operating Voltage: DC10~33V, DC30~50V
        Operating Temperature: -40℃~ 80℃
        Light Source: 9×1~3W high efficiency LEDs
        Color Temperature: warm white: ~3000K; natural white: 4000~4500K; pure white: ~6000K
        Luminous Flux: ~1000lm
        Light Emitting Angle: H40°/V30°
        Current: 1.3Amps @ DC12V, 0.7Amps @ DC24V
        Power: 15W (max.)
        Lens: UV resistant PC lens
        Housing: Die-casting aluminum housing with surface sprayed
        Accessories: stainless steel bracket bolts screws
        IP 67,CE Approved

        4Q4E
        4Q4E

          Specification:
          Operating Voltage: DC10~33V, DC30~50V
          Operating Temperature: -40℃~ 80℃
          Light Source: 9×1~3W high efficiency LEDs
          Color Temperature: warm white: ~3000K; natural white: 4000~4500K; pure white: ~6000K
          Luminous Flux: ~1000lm
          Light Emitting Angle: H40°/V30°
          Current: 1.3Amps @ DC12V, 0.7Amps @ DC24V
          Power: 15W (max.)
          Lens: UV resistant PC lens
          Housing: Die-casting aluminum housing with surface sprayed
          Accessories: stainless steel bracket bolts screws
          IP 67,CE Approved

          P-4Q4
          P-4Q4

          Specification:
          Operating Voltage: DC10~33V, DC30~50V
          Operating Temperature: -40℃~ 80℃
          Light Source: 9×1~3W high efficiency LEDs
          Color Temperature: warm white: ~3000K; natural white: 4000~4500K; pure white: ~6000K
          Luminous Flux: ~1000lm
          Light Emitting Angle: H40°/V30°
          Current: 1.3Amps @ DC12V, 0.7Amps @ DC24V
          Power: 15W (max.)
          Lens: UV resistant PC lens
          Housing: Die-casting aluminum housing with surface sprayed

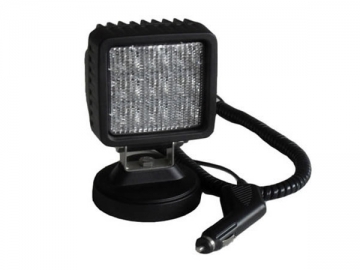

          Accessories: stainless steel bracket bolts screws portable handle
          IP 67,CE Approved

          4Q4-F
          4Q4-F

            Specification:
            Operating Voltage: DC10~33V, DC30~50V
            Operating Temperature: -40℃~ 80℃
            Light Source: 9×1~3W high efficiency LEDs
            Color Temperature: warm white: ~3000K; natural white: 4000~4500K; pure white: ~6000K
            Luminous Flux: ~1000lm
            Light Emitting Angle: H80°/V30°
            Current: 1.3Amps @ DC12V, 0.7Amps @ DC24V
            Power: 15W (max.)
            Lens: UV resistant PC lens
            Housing: Die-casting aluminum housing with surface sprayed
            Accessories: stainless steel bracket bolts screws
            IP 67,CE Approved

            Applications:

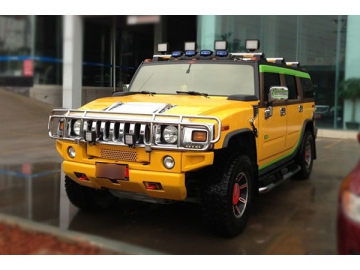

            The LED mounted lamp is widely used in engineering vehicles, mining machinery, agricultural machinery, fork trucks, dune buggies and other specialized vehicles.
