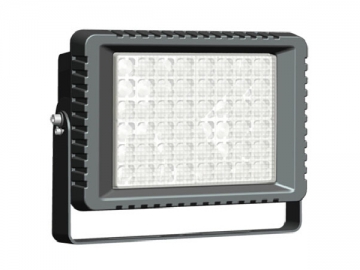

LED Work Lamp, 8×10 Series
Description
The 8x10 series LED work lamp is designed with a patented technology. It features a higher efficiency and saves more energy than an LED with a traditional TIR lens. The precision die cast aluminum base of the LED automotive light ensures an excellent heat dissipation and a longer service life. Euro, spot, and floor patterns are available in the LED work lamps for vehicles.
Specification:
Operating Voltage: DC10~33V
Operating Temperature: -40℃~ 80℃
Light Source: 48×1~3W high efficiency LEDs
Color Temperature: warm white: ~3000K; natural white: 4000~4500K; pure white: ~6000K
Luminous Flux: ~7000lm
Light Emitting Angle: H40°/V30°
Current: 3.2Amps @ DC24V
Power: 90W (max.)
Lens: UV resistant PC lens
Housing: Die-casting aluminum housing with surface sprayed
Accessories: big stainless steel bracket bolts screws
IP 67，CE Approved
Part Name: 8×10 LED Work Lamp
Part No.: 8Q10-F
Specifications
Operating Voltage: DC10~33V
Operating Temperature: -40℃~ 80℃
Light Source: 48×1~3W high efficiency LEDs
Color Temperature: warm white:~3000K; natural white:4000~4500K; pure white:~6000K
Luminous Flux: ~7000lm
Light Emitting Angle: H40°/V30°
Current: 3.2Amps @ DC24V
Power: 90W (max.)
Lens: UV resistant PC lens
Housing: Die-casting aluminum housing with powder coated surface
Accessories: big stainless steel bracket bolts screws
IP 67
CE approved
Packing Info:
Individual white box, 4pcs/ctn,
N.W=14.2KG/CTN, G.W=15.2KG/CTN,
CTN SIZE: 46×33×24CM;
