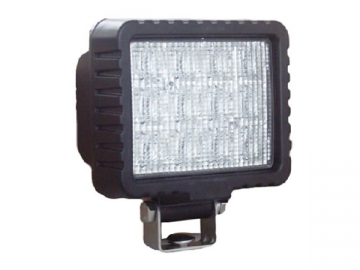

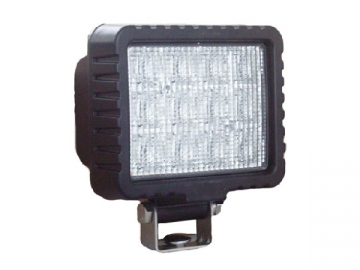

LED Work Lamp, 4×5 Series
Description
Designed using patented technology, the 4x5 series LED work lamp has a higher efficiency and saves more energy than traditional LEDs with a TIR lens. A precision die cast aluminum base ensures an outstanding heat dissipation and an extended service life. Euro, flood, and spot patterns are optional.
Specification:
Operating Voltage: DC10~33V, DC30~50V
Operating Temperature: -40℃~ 80℃
Light Source: 12×1~3W high efficiency LEDs
Color Temperature: warm white: ~3000K; natural white: 4000~4500K; pure white: ~6000K
Luminous Flux: ~1500lm
Light Emitting Angle: H80°/V30°
Current: 1.6Amps @ DC12V, 0.8Amps @ DC24V
Power: 20W (max.)
Lens: UV resistant PC lens
Housing: Die-casting aluminum housing with surface sprayed
Accessories: stainless steel bracket bolts screws
IP 67,CE Approved
Specification:
Operating Voltage: DC10~33V, DC30~50V
Operating Temperature: -40℃~ 80℃
Light Source: 12×1~3W high efficiency LEDs
Color Temperature: warm white: ~3000K; natural white: 4000~4500K; pure white: ~6000K
Luminous Flux: ~1500lm
Light Emitting Angle: H40°/V30°
Current: 1.6Amps @ DC12V, 0.8Amps @ DC24V
Power: 20W (max.)
Lens: UV resistant PC lens
Housing: Die-casting aluminum housing with surface sprayed
Accessories: stainless steel bracket bolts screws
IP 67,CE Approved
Specification:
Operating Voltage: DC10~33V, DC30~50V
Operating Temperature: -40℃~ 80℃
Light Source: 12×1~3W high efficiency LEDs
Color Temperature: warm white: ~3000K; natural white: 4000~4500K; pure white: ~6000K
Luminous Flux: ~1500lm
Light Emitting Angle: H40°/V30°
Current: 1.6Amps @ DC12V, 0.8Amps @ DC24V
Power: 20W (max.)
Lens: UV resistant PC lens
Housing: Die-casting aluminum housing with surface sprayed

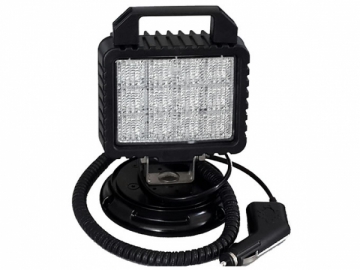

Accessories: stainless steel bracket bolts screws portable handle
IP 67,CE Approved
Part Name: 4×5 LED Work Lamp/Floodlight Pattern
Part No.: 4Q5-F
Specification:
Operating Voltage: DC10～33V, DC30～50V
Operating Temperature: -40℃～ 80℃
Light Source: 12×1～3W high efficiency LEDs
Color Temperature: warm white:～3000K; natural white:4000～4500K; pure white:～6000K;
Luminous Flux: ～1500lm
Light Emitting Angle: H80°/V30°
Current: 1.6Amps @ DC12V, 0.8Amps @ DC24V
Power: 20W (max.)
Lens: UV resistant PC lens
Housing: Die-casting aluminum housing with powder coated surface
Accessories: stainless steel bracket bolts screws
IP 67
CE approved
Applications:
The LED mounted lamp is widely used in engineering vehicles, mining machinery, agricultural machinery, fork trucks, dune buggies and other specialized vehicles.
