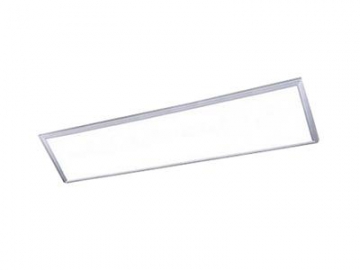

Dimmable LED Panel Light
Features
- Special body design, integrated the driver with the panel, easy to install and transport.
- Intelligent control of brightness from 1% to 100%.
- It is environmentally friendly with no UV light or infrared light. During the production, there is no pollution, such as lead, mercury or other pollutants, emitted.
- Special circuit design prevents damage on one lamp from affecting the other lights and overall lighting effect

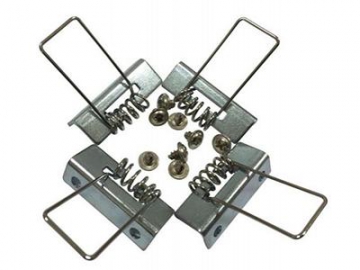

- A variety of installation options, such as recessed, suspension, and frame mounted installation.
- The panel light features an ultra-thin design, with the thickness only 9mm, giving it a simple, fashionable appearance.
- With the over-temparature protection, over-current protection, over-voltage protection, increase life span.
Specification
- Power36W/40W/48W/60W/72W
- LED Model 2835 / 4014 SMD LED
- LED Driver Tridonic, OSRAM, Lifud, BOKE, AGT and others are available
- Dimming option Non-dimming, Triac, 0/1-10V, Dali and others are available
- Frame type Flat frame and Step frame are optional
- Installation Recessed, Suspention, Ceiling, Surface mounted available
- PF ≥ 0.9
- Characteristic Intelligent control of brightness
- Input Voltage AC220-240V /AC100-240V50/60Hz
- CRI 80+
- CCT 2700-3100k, 3800-4500k, 6000-6500k
- Beam Angle 112°
- SDCM <6
- Body Material Aluminum+PP+MS/PMMA
- Housing color white/silver
- Lifespan 50000 hours
- Warranty 3-5 Years
- 36W/40W/48W/60W
- 40W/48W
- 60W
Product Models
| Model No. | Power | Fixture Size | LED Model | CCT | CRI | SDCM | Lumens | Luminous Efficiency | Beam Angle | Input Voltage |

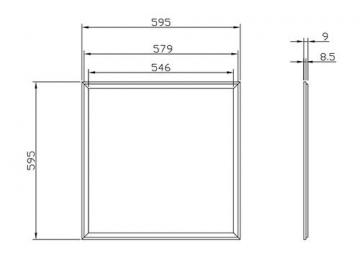

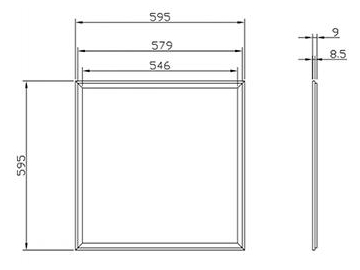

| BH-6060-36W-P | 36W | 595*595*9mm | 2835 / 4014 SMD LED | 2700-3100k 3800-4500k 6000-6500k | 80+ | < 6 | 3600-43200lm | 100-120lm/w | 112° | AC220-240V / AC100-240V 50/60Hz |
| BH-6060-40W-P | 40W | 4000-4800lm | ||||||||
| BH-6060-48W-P | 48W | 4800-5760lm | ||||||||
| BH-6060-60W-P | 60W | 6000-7200lm | ||||||||

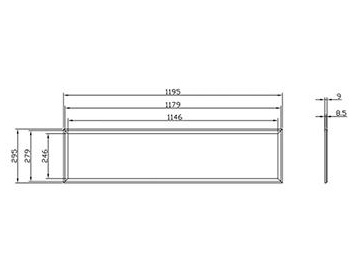

| BH-30120-40W-P | 40W | 295*1195*9mm | 2835 / 4014 SMD LED | 2700-3100k 3800-4500k 6000-6500k | 80+ | < 6 | 4000-4800lm | 112° | AC220-240V / AC100-240V 50/60Hz | |
| BH-30120-48W-P | 48W | 4800-5760lm | ||||||||

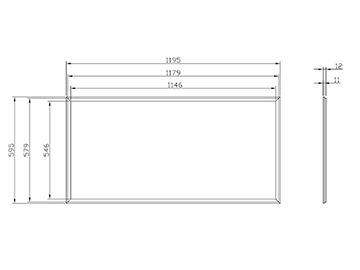

| BH-60120-60W-P | 60W | 595*1195*12mm | 6000-7200lm | |||||||
| BH-60120-72W-P | 72W | 595*1195*12mm | 7200-8640lm |
Remark: Special sizes below are also available for various markets LED panel light.
| Fixture Size | Markets | INQUIRY | |
| 620*620*9mm | 320*1220*9mm | Germany | Specific inquiry required. The parameters and specifications are same as the ones of panel light above, only size is different. |
| 620*620*10mm | 120*1220*10mm | Brazil | |
| 605*605*9mm | 305*1205*9mm | Argentina | |
| 600*600*9mm | 300*1200*9mm | Others | |
| 595*595*35mm | 295*1195*35mm | for Surface Mounted | |
| Other sizes can be customized | |||
Product details
Step frame and flat frame are available

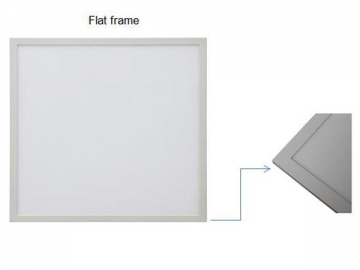

- Flat frame

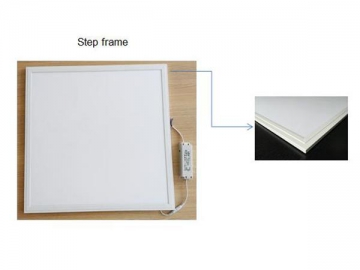

- Step frame

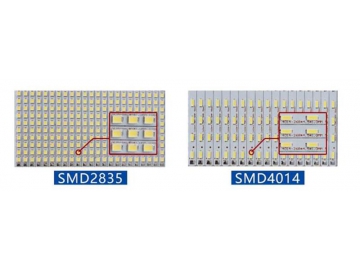

- BRAND SMD 4014/2835 LED CHIP SELECTED

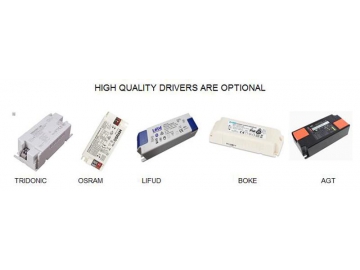

- Drivers selected

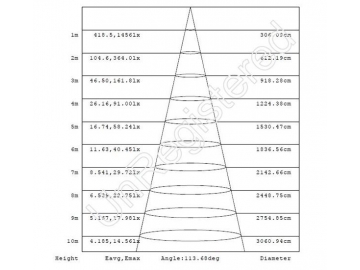

Photometric

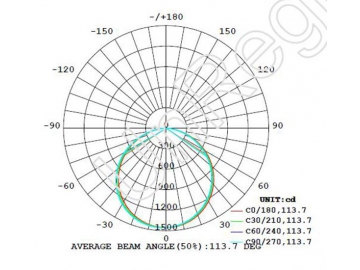

- Luminous Intensity Distribution Diagram 40W 295*1195mm Beam Angle 112°
- Luminous Intensity Distribution Diagram 40W 295*1195mm Beam Angle 112°
