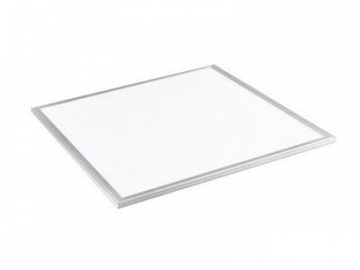

Dimmable and CCT Tunable LED Panel Light
Features
- Special body design, integrated the driver with the panel, easy to install and transport;
- High quality, glare free, stable, reliable and constant current power supply.
- Intelligent control of brightness from 1% to 100% and color temperature from 2700K-6000K.
- The panel light features an ultra-thin design, with the thickness only 9mm, giving it a simple, fashionable appearance.
- Special circuit design prevents damage on one lamp from affecting the other lights and overall lighting effect
- Environmentally friendly: it does not emit any pollution, such as lead, mercury or other pollutants
- Integrated varies installtion ways, make the installation flexible;
- With the over-temparature protection, over-current protection, over-voltage protection, increase life span.
Specification
- Power36W/40W/48W/60W/72W
- LED Model 2835 / 4014 SMD LED
- LED Driver Tridonic, OSRAM, Lifud, BOKE, AGT and others are available
- Dimming option Non-dimming, Triac, 0/1-10V, Dali and others are available
- Frame type Flat frame and Step frame are optional
- Installation Recessed, Suspention, Ceiling, Surface mounted available
- PF ≥ 0.9
- Input Voltage AC220-240V /AC100-240V 50/60Hz
- Characteristic Intelligent human induction panel lamp
- CRI 80+
- CCT 2700-6000k
- Beam Angle 112°
- SDCM ＜6
- Body Material Aluminum+PP+MS/PMMA
- Housing color white/silver
- Lifespan 50000 hours
- Warranty 3-5 Years
- 36W/40W/48W/60W
- 40W / 48W
- 60W
Product Models
| Model No. | Power | Fixture Size | LED Model | CCT | CRI | SDCM | Lumens | Luminous Efficiency | Beam Angle | Input Voltage |

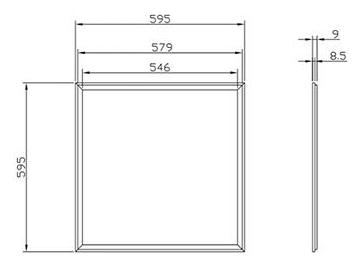

| BH-6060-36W-N | 36W | 595*595*9mm | 2835 / 4014 SMD LED | 2700-6000k | 80+ | < 6 | 3600-43200lm | 100-120lm/w | 112° | AC220-240V / AC100-240V 50/60Hz |
| BH-6060-40W-N | 40W | 4000-4800lm | ||||||||
| BH-6060-48W-N | 48W | 4800-5760lm | ||||||||
| BH-6060-60W-N | 60W | 6000-7200lm | ||||||||

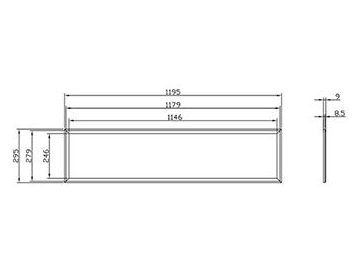

| BH-30120-40W-N | 40W | 295*1195*9mm | 2835 / 4014 SMD LED | 2700-6000k | 80+ | < 6 | 4000-4800lm | 112° | AC220-240V / AC100-240V 50/60Hz | |
| BH-30120-48W-N | 48W | 4800-5760lm | ||||||||

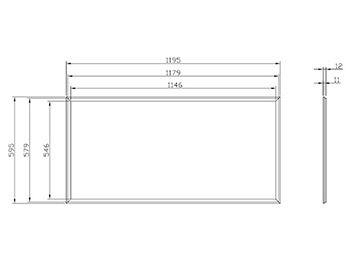

| BH-60120-60W-N | 60W | 595*1195*12mm | 6000-7200lm | |||||||
| BH-60120-72W-N | 72W | 595*1195*12mm | 7200-8640lm |
Remark: Special size can be customized to meet your exact needs.
Remark: Special sizes below are also available for various markets LED panel light.
| Fixture Size | Markets | INQUIRY | |
| 620*620*9mm | 320*1220*9mm | Germany | Specific inquiry required. The parameters and specifications are same as the ones of panel light above, only size is different. |
| 620*620*10mm | 120*1220*10mm | Brazil | |
| 605*605*9mm | 305*1205*9mm | Argentina | |
| 600*600*9mm | 300*1200*9mm | Others | |
| 595*595*35mm | 295*1195*35mm | for Surface Mounted | |
| Other sizes can be customized | |||
Photometric

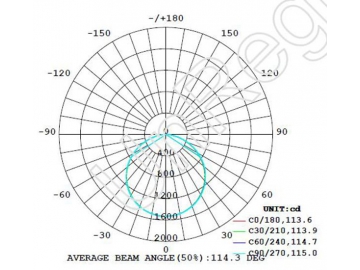

- Luminous Intensity Distribution Diagram 40W 595*595mm Beam Angle 112°

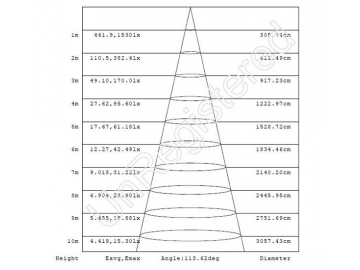

- The Average Illuminance Effective Figure 40W 595*595mm Beam Angle
Index
ceiling light, LED light, SMD LED, indoor lighting
