LED Frameless round panel light with motion sensor
Application
C series led panel light is designed to be used in residential and commercial buildings alike, including bars, offices, homes, schools, and more
Specification
- Power 9W/18W/24W/36W
- LED Model SMD2835
- LED Driver Lifud, Boke and self-developed power supply are available
- Dimming options Non-dimming, Triac, 0/1-10V, Dali and others are available
- Body Material Aluminum PC
- Housing color White
- Installation Recessed
- Application both residential and commercial areas，such as office, hotel etc...
- Features Round hole cutting is suitable for both Round & Square model, easy for installing.
- Lifespan >30000 hours
- Warranty3-5 Years

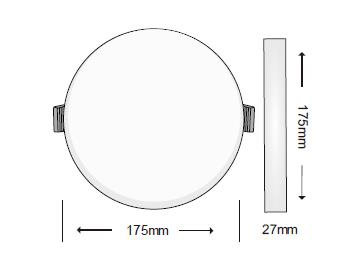

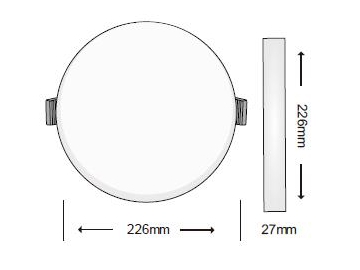

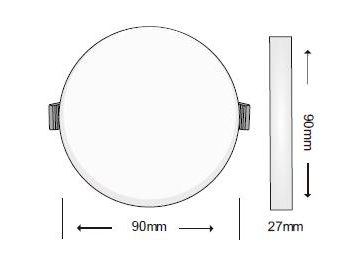

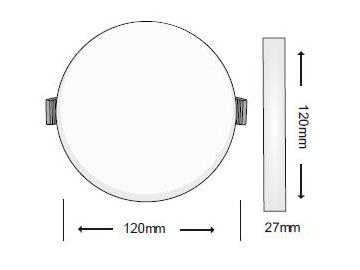

Dimensions
- 9W
- 18W
- 24W
- 36W
Product Models
| Model No. | Power | Fixture Size | LED Model | CCT | CRI | Lumens | Beam Angle | Input Voltage |
| BH-RP-9W-C | 9W | ф90mm*27mm (Hole size:ф75mm) | SMD2835 | 2700K-7000K | 80 | 900lm±5% | 180° | AC220-240V/AC100-240V 50/60Hz |
| BH-RP-18W-C | 18W | ф120mm*27mm (Hole size:ф108mm) | 1800lm±5% | |||||
| BH-RP-24W-C | 24W | ф170mm*27mm (Hole size:ф155mm) | 2400lm±5% | |||||
| BH-RP-36W-C | 36W | ф225mm*27mm (Hole size:ф206mm) | 3600lm±5% |
