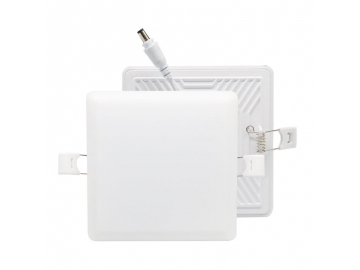

LED Panel Light, Frameless LED Square Panel Light
Application
Frameless LED square panel light is designed to be used in residential and commercial buildings alike, including bars, offices, homes, schools, and more.
Specification
- Power 9W/18W/24W/36W
- LED Model SMD2835
- LED Driver Lifud, Boke and self-developed power supply are available
- Dimming options Non-dimming, Triac, 0/1-10V, Dali and others are available
- Body Material Aluminum PC
- Housing color White
- Installation Recessed
- Features Round hole cutting is suitable for both Round & Square model, easy for installing.
- Lifespan >30000 hours
- Warranty3-5 Years
Dimension

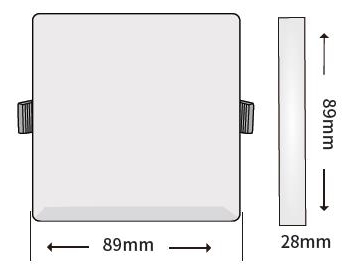

- 9W

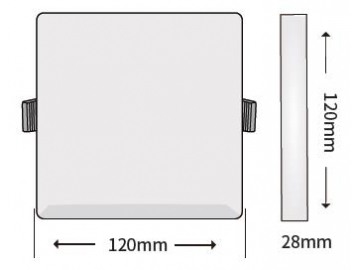

- 18W

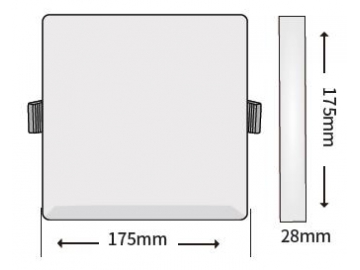

- 24W

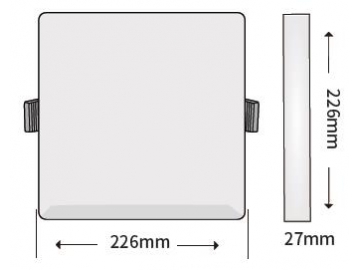

- 36W
Product Models
| Model No. | Power | Fixture Size | LED Model | CCT | CRI | Lumens | Beam Angle | Input Voltage |
| BH-SP-9W-D1 | 9W | 90mm*90mm*27mm (Hole size:ф75mm) | SMD2835 | 2700K-7000K | 80 | 900lm±5% | 100° | AC85-265V/ 50/60Hz |
| BH-SP-18W-D1 | 18W | 120mm*120mm*27mm (Hole size:ф108mm) | 1800lm±5% | |||||
| BH-SP-24W-D1 | 24W | 170mm*170mm*27mm (Hole size:ф155mm) | 2400lm±5% | |||||
| BH-SP-36W-D1 | 36W | 225mm*225mm*27mm (Hole size:ф206mm) | 3600lm±5% |
