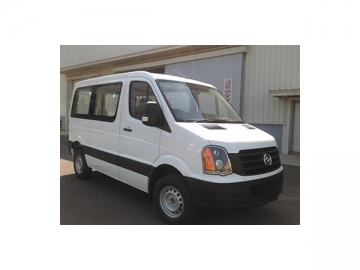

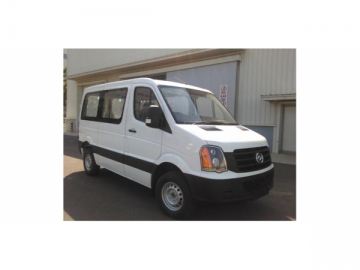

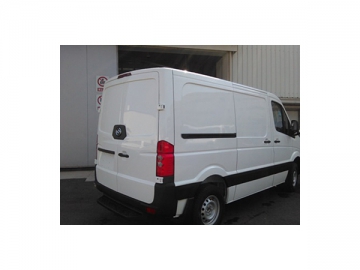

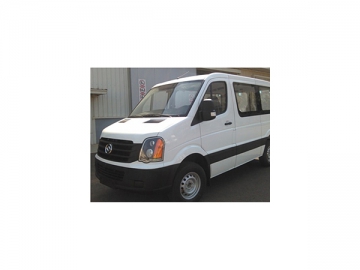

DD6534GL Mini Bus
The mini bus with the models of DD6534GL, DD6535GL and DD5044XXYGL is our featured product after stepping into the light bus field. It is a high quality, high security and high reliability minivan or minicoach developed by means of state of the art European design concept and product standard, superior supplier resources in the world and top level design team.
Features
1. Excellent Engine
The engine of the mini bus applies the new-generation turbocharged system and Bosch TDCI fuel system which perfectly combine high power, low fuel consumption and low noise, and reach Euro V emission standard.
2. Superior Transmission
The multi-purpose vehicle comes with a synchronously upgraded 5-gear transmission which is made from up to date German ZF AMT technology and provides unprecedented power combined with perfect manipulation performance, thus bringing a wonderful driving experience.
3. Optimized Body Construction
Made in line with the design standard of European light commercial vehicles (LCV), our mini bus boasts a fully integral, frameless, high strength and energy absorption body construction. In virtue of HCB body design concept, it realizes a perfect combination of high comfort and high bearing capacity.
4. Safer Driving
Equipped with double ABRS, three-point pre-tightening safety belt and many other high grade security configurations, the minibus enables safer driving.
5. Compact Size
The Raytour A1 series mini bus comes with compact size, ensuring high flexibility in driving. It can meet customers' needs in segmented markets.
Raytour A1 | |||||||
Application Types | Official Business | Express | Logistics | ||||
Model | DD6534GL | DD6535GL | DD5044XXYGL | ||||
Parameters | Emission standard | Euro V | Euro V | Euro V | |||
Overall dimensions ( mm) | 5295 (5380) /2025/2375 | 5295 (5380) /2025/2375 | 5295 (5380) /2025/2375 | ||||
Wheelbase ( mm) | 3300 | 3300 | 3300 | ||||
Max. total mass (kg) | 3600 | 3600 | 3600 | ||||
Max. speed ( km/h) | 140/130 | 140/130 | 130/140 | ||||
Fuel consumption per hundred kilometers (L) | 8.9/8.7 | 8.9/8.7 | 8.9/8.7 | ||||
Fuel tank capacity (L) | 80 | 80 | 80 | ||||
Seats | 12 | 11 | 6 | 6 | 3 | 3 | |
Rear axle gear ratio ( 4.1) | ● | ● | ○ | ○ | ○ | ○ | |
Rear axle gear ratio ( 5.1) | ○ | ○ | ● | ● | ● | ● | |
Powertrain (engine) | Model | YC4Y20 | YC4Y20 | YC4Y20 | |||
Emission standards | GB Standard V SCR | GB Standard V SCR | GB Standard V SCR | ||||
Displacement ( L) | 2 | 2 | 2 | ||||
Rated power/speed ( kW/rpm) | 100/4000 | 100/4000 | 100/4000 | ||||
Max. torque/speed ( N.m/rpm) | 300/1800-2750 | 300/1800-2750 | 300/1800-2750 | ||||
Transmission | ZM035 | ZM035 | ZM035 | ||||
Appearance and Design | Sliding side door | ● | X | ● | X | X | |
Integral side windows | ● | ● | ● | ● | X | X | |
White glass | ● | ● | ● | ● | X | X | |
Sliding side window with white glass (front) | ○ | ○ | ○ | ○ | X | X | |
Sliding side window with white glass (rear) | ○ | ○ | ○ | ○ | X | X | |
Sliding side window with white glass (Integral type) | ○ | ○ | ○ | ○ | X | X | |
Double rear door | ● | ● | ● | ● | ● | ● | |
Central lock | ● | ● | ● | ● | ● | ● | |
Front electric window | ● | ● | ● | ● | ● | ● | |
Side view mirror (Hydraulic adjusting) | ● | ● | ● | ● | ● | ● | |
Outside rear-view mirror (electric adjusting, electric heating) | ○ (comfort package ) | ○ (comfort package ) | ○ (comfort package ) | ○ (comfort package ) | ○ (comfort package ) | ○ (comfort package ) | |
Aluminum alloy wheel rim | ● | ○ | ○ | X | X | X | |
Iron wheel hub | ○ | ● | ● | ● | ● | ● | |
Wheel cover (big) | ○ | ○ | ○ | ○ | ○ | ○ | |
Wheel cover (small) | ○ | ● | ● | ● | ● | ● | |
Full size spare wheel (steel hub ) | ● | ● | ● | ● | ● | ● | |
Loudspeaker | ● | ● | ● | X | X | X | |
Subwoofer | ● | ● | ● | ● | ● | ● | |
2015 type front grille-chrome plating | X | X | X | X | X | X | |
2015 type front grille-black | ● | ● | ● | ● | ● | ● | |
Safety and anti-theft design | Driver airbag | ● | ○ (Security pack ) | ○(Security pack ) | ○(Security pack ) | ○(Security pack ) | ○(Security pack ) |
Co-driver airbag | ● | X | ○(Security pack ) | X | X | X | |
Front and rear disc brakes | ● | ● | ● | ● | ● | ● | |
Three-point front seats safety belts (Pre-tensioning, force limited) | ● | ○(Security pack ) | ○(Security pack ) | ○(Security pack ) | ○(Security pack ) | ○(Security pack ) | |
Three-point front seats safety belts ( emergency locking ) | X | ● | ● | ● | ○(Security pack ) | ● | |
Rear seats safety belts (Two point) | ● | ● | X | X | X | X | |
Rear seats safety belts (Three point) | X | X | ● | ● | X | X | |
Driver's safety belt forewarning device | ● | ● | ● | ● | ● | ● | |
Electronic Article Surveillance (SAS) | ● | ● | ● | ● | ● | ● | |
Cruise control | ● | ○(Security pack ) | ○(Security pack ) | ○(Security pack ) | ○(Security pack ) | ○(Security pack ) | |
High-mounted stop lamp | ● | ● | ● | ● | ● | ● | |
Speed sensitive automatic padlock | ● | ● | ● | ● | ● | ● | |
Flameout self-unlocking | ● | ● | ● | ● | ● | ● | |
Front fog lamp | ● | ○(Security pack ) | ● | ○(Security pack ) | ○(Security pack ) | ○(Security pack ) | |
Reverse sensor | ● | ○(Security pack ) | ○(Security pack ) | ○(Security pack ) | ○(Security pack ) | ○(Security pack ) | |
ABS EBD | ● | ● | ● | ○(Security pack ) | ○(Security pack ) | ○(Security pack ) | |
Warning unit: Warning to pull out the keys | ● | ● | ● | ● | ● | ● | |
Warning unit: Warning to turn off the front lamps | ● | ● | ● | ● | ● | ● | |
Configurations for more comfort | Front air conditioning | ● | ● | ● | ● | ● | ● |
Rear air conditioning | ● | ● | X | X | X | X | |
Rear heating system | ● | ● | ● | X | X | X | |
Air conditioning intake with nylon mesh filter | ● | ● | ● | ● | ● | ● | |
Air conditioning intake with pollen filter | ○ | ○ | X | X | X | X | |
6-direction adjustable driver seat | ● | ● | ● | ● | ● | ● | |
Sunshade curtain | ● | ○ | X | X | X | X | |
Remotely controlled, foldable key | ● | ● | ● | ● | ● | ● | |
Electronic clock | ● | ○ (Comfort package ) | X | X | X | X | |
B-pillar handrail | ● | X | ● | X | X | X | |
Right front door handrail | X | ● | X | X | X | X | |
Right front ceiling handrail | ● | X | ● | X | ● | X | |
MP3 Radio | ● | ● | ● | ● | ● | ● | |
MP5 Navigation system Rear View Camera Radio | ○ (Comfort package ) | ○ (Comfort package ) | ○ (Comfort package ) | ○ (Comfort package ) | ○ (Comfort package ) | ○ (Comfort package ) | |
TPMS | ○ (Comfort package ) | ○ (Comfort package ) | ○ (Comfort package ) | ○ (Comfort package ) | ○ (Comfort package ) | ○ (Comfort package ) | |
Traveling data recorder | ○ | ○ | X | X | X | X | |
Instrument board loudspeakers (right and left) | ● | X | X | X | X | X | |
Front door loudspeakers (right and left) | ● | ● | ● | ● | ● | ● | |
Side loudspeakers (right and left) | ● | ● | X | X | X | X | |
Driver and co-driver door lamps | ● | X | X | X | X | X | |
Interior lamps (1R) | ● | ● | ● | ● | ● | ● | |
Fuel auxiliary heating system | ○ | ○ | X | X | X | X | |
Functional configurations | CAN Bus centralized diagnosis | ● | ● | ● | ● | ● | ● |
Instantaneous fuel consumption display | ● | ● | ● | ● | ● | ● | |
Continuous mileage display | ● | ● | ● | ● | ● | ● | |
Rear bumper | X | X | ○ | ○ | ○ | ○ | |
Hooks for fixing cargos | X | X | X | X | X | X | |
D-Pillar handrail | X | X | X | X | X | X | |
Luggage compartment | X | X | X | X | ● | ● | |
Sidewall interior panel ( Cellular board ) | X | X | X | X | ● (Lower panel ) | ● (Lower panel ) | |
Sidewall interior panel (Without PVC parts) | ● | ● | ● | ● | X | X | |
Simple ceiling ( special for the express type ) | X | X | ● | ● | ● | ● | |
Driver and co-driver door guard boards | ● | X | X | X | X | X | |
Note : ● stands for Standard Configuration ; ○ stands for Optional ; X means not provided ;( This table is only used for reference) |
