Tungsten Carbide Wire Guide Nozzle Manufacturer

Tungsten Carbide Wire Guide Nozzle

: http://wire-tensioning.com

Description

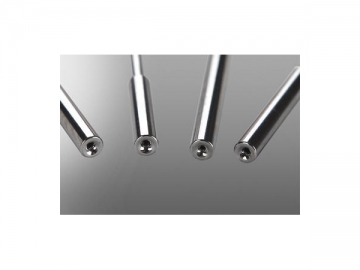

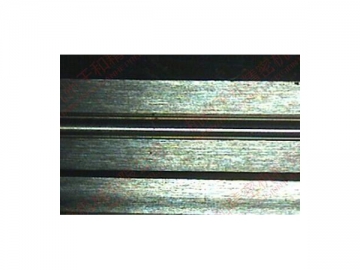

The Tungsten carbide wire guide nozzle is precisely processed from ultrafine particle tungsten carbide. The hardness is up to above HRA90, and the bending strength is more than 2300N/mm. QIANHE uses special equipment for precision abrasive machining and precision grinding treatment of inner holes to make the roughness reach up to Ra0.1, and the roughness of R at both ends are up to Ra0.025. The curvature radiuses of the inlet and outlet two ends are scientifically designed to ensure that the wires pass smoothly and naturally. There is no step inside the hole of the wire guide nozzle, thus improving the phenomenon of easy bending and blocking.

Application
The tungsten carbide wire guide nozzle is mainly used on full-automatic winding machines for high-speed winding of fine coils and superfine enameled wires.

Features
1. Super-high compact resistance, and the bending resistance reaching up to 3800N/mm²
2. Extremely high rigidity
3. Super-high hardness, up to HRA90

Parameters

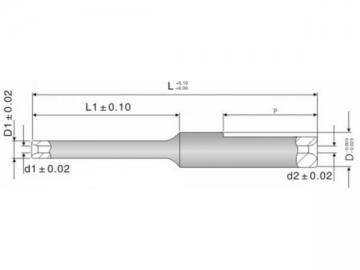

Serial number	Specification	L	L1	D	D1	d1	d2
1	W0202-2005-1505	15	5	2	0.5	0.2	0.2
2	W0202-2000-3300	33	*	2	*	0.2	0.2
3	W0202-3010-3015	30	15	3	1	0.2	0.2
4	W0202-3006-3010	30	10	3	0.6	0.2	0.2
5	W0202-3015-3015	30	15	3	1.5	0.2	0.2
6	W0202-3007-3508	35	8	3	0.7	0.2	0.2
7	W0303-3008-3012P	30	12	3	0.8	0.3	0.3
8	W0303-3012-3519	35	19	3	1.2	0.3	0.3
9	W0303-3008-4506	46	6	3	0.8	0.3	0.3
10	W0303-3020-3515	35	15	3	2	0.3	0.3
11	W0303-0800-3500	35	*	0.8	*	0.3	0.3
12	W0303-3018-4018	40	18	3	1.8	0.3	0.3
13	W0404-3010-3009	30	9	3	1	0.4	0.4
14	W0404-3007-4528	45	28	3	0.7	0.4	0.4
15	W0505-3012-4506T	45	6	3	1.2	0.5	0.5
16	W0606-3012-3520	35	20	3	1.2	0.6	0.6
17	W0606-3016-4010T	40	10	3	1.6	0.6	0.6
18	W0808-3018-3518	35	18	3	1.8	0.8	0.8
19	W0808-3018-3010	30	10	3	1.8	0.8	0.8
20	W1212-3022-3010	30	10	3	2.2	1.2	1.2

We can customize tungsten carbide wire guide nozzles according to customers' special requirements.

Product number explanation
e.g. W0202-2005-1505
w means tungsten carbide alloy, the hole diameter of the entering end d1 equals to 0.2, the major diameter D1 equal to 2, the minor diameter D1 equals to 0.5, the total length L equals to 15, and the minor length L1 equals to 0.5.

Qianhe offers a variety of coil winding machine components, as a tungsten carbide wire guide nozzle manufacturer and supplier, we mainly provide coil wire tensioner, pneumatic shear, as well as wire guide nozzles. Rich experience in coil winding, we are offering quality coil winding nozzle for global customers.
