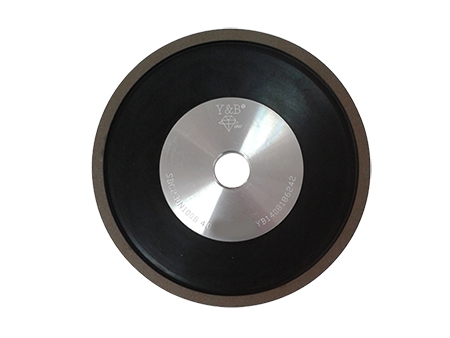

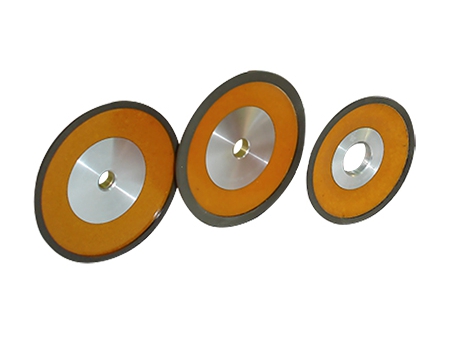

Resin Bond Grinding Wheel for Wood Cutting

Resin Bond Grinding Wheel for Wood Cutting
Resin Bond Grinding Wheel for Wood Cutting
Resin Bond Grinding Wheel for Wood Cutting
Resin Bond Grinding Wheel for Wood Cutting
Resin Bond Grinding Wheel for Wood Cutting
Resin Bond Grinding Wheel for Wood Cutting
Resin Bond Grinding Wheel for Wood Cutting
Request a Quote

This product has been discontinued and removed from our shelves.

The resin bond grinding wheel has a light weight since its abrasive compound is made of aluminum and bakelite. This also makes it easy to install and remove. Due to the low heat generated during grinding, the thermal damage to the workpieces will be greatly reduced. It is widely used for rough grinding, fine grinding, and polishing.

12A2 Grinding wheel
Outer diameter (mm) Overall thickness (mm) Arbor hole diameter (mm) Arbor hole width (mm) Abrasive width (mm) Abrasive thickness (mm)
75 12 10/19.05/20 5 3/5/6/8/10 2/3/4/6
100 15 19.05/20 6
125 18 31.75/32 8 5/6/10
150 20 9 5/6/10/15
175 22 10 6/10/15
200 24 31.75/32/40/75 11 6/10/15/20
250 26 12
Note: other specifications can be customized upon request!
