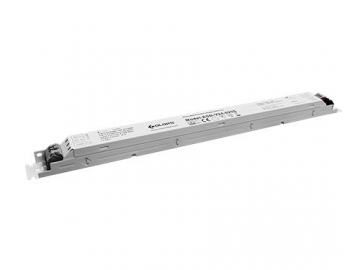

ESD-V24-100S 24VDC 100W Dimmable LED Power Supply
Features
- This dimmable LED power supply adopts universal full range input of 100-270VAC.
- This power supply has built-in intelligent load identification CPU (the light can be dimmed completely).
- The LED power supply has short-circuit protection, over-temperature protection, overload protection and other functions to make it more secure to use.
- The power efficiency is up to over 92%.
- The LED power supply has function of three-in-one dimming (0-10V DC, PWM, resistance).
- This dimmable power supply has a built-in power factor corrector.
Basic Parameters
| Input voltage | 100~277VAC 50/60Hz |
| Input current | 1.6A Max |
| Output voltage | 24VDC |
| Output current | 4.1A Max |
| Output power | 100W |
| Power factor | >0.95 |
| Power efficiency | 92% |
| Size | 390×38×28.5mm |
