1BG BSP Male 60° Cone Hose Adapter, with O-Ring
Application: for use with hydraulic braided hoses
Materials:- Stainless steel BSP male 60°cone hose adapter, with O-ring
- Carbon steel BSP male 60°cone hose adapter, with O-ring

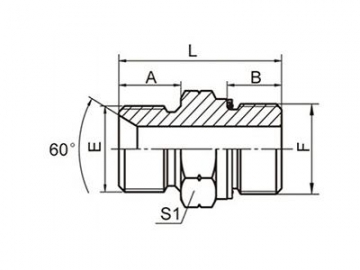

| Part No. | Thread | O-ring | Dimensions | |||||
| E | F | A | B | L | S1 | |||
| 1BG-04 | G1/4''×19 | G1/4''×19 | 10.77×2.62 | 12 | 10 | 30 | 19 | |
| 1BG-06 | G3/8''×19 | G3/8''×19 | 13.94×2.62 | 13.5 | 11.5 | 33 | 22 | |
| 1BG-06-04 | G3/8''×19 | G3/8''×19 | 10.77×2.62 | 13.5 | 10 | 31.5 | 22 | |
| 1BG-08 | G1/2''×14 | G1/2''×14 | 17.12×2.62 | 16 | 14 | 41 | 27 | |
| 1BG-12 | G3/4''×14 | G3/4''×14 | 23.47×2.62 | 18.5 | 15.5 | 46 | 32 | |
| 1BG-12-08 | G3/4''×14 | G3/4''×14 | 17.12×2.62 | 18.5 | 14 | 45.5 | 32 | |
| 1BG-16 | G1''×11 | G1''×11 | 29.74×3.53 | 20.5 | 18 | 53 | 41 | |
| 1BG-16-12 | G1''×11 | G1''×11 | 23.47×2.62 | 20.5 | 15.5 | 52 | 41 | |
| 1BG-20 | G1.1/4''×11 | G1.1/4''×11 | 37.69×3.53 | 20.5 | 20 | 58.5 | 50 | |
| 1BG-24 | G1.1/2''×11 | G1.1/2''×11 | 44.04×3.53 | 23 | 21.5 | 62.5 | 55 | |
