1ST BSPT Male 60˚ Cone Hose Adapter, JIS Standard
Application: for use with hydraulic braided hoses
Materials:- Stainless steel BSPT male 60˚ cone hose adapter, JIS standard
- Carbon steel BSPT male 60˚ cone hose adapter, JIS standard

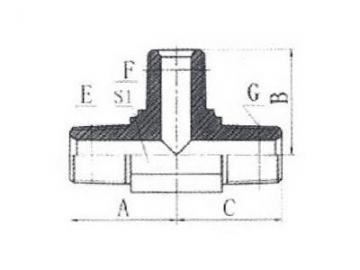

| Part No. | Thread | Dimensions | |||||
| E | F | A | B | L | S1 | ||
| 1ST-02 | G1/8"×28 | G1/8"×28 | 12 | 10 | 28 | 14 | |
| 1ST-04 | G1/4"×19 | G1/4"×19 | 14 | 14.5 | 34.5 | 19 | |
| 1ST-06 | G3/8"×19 | G3/8"×19 | 16 | 15 | 39 | 22 | |
| 1ST-08 | G1/2"×14 | G1/2"×14 | 19 | 20 | 48.5 | 27 | |
| 1ST-12 | G3/4"×14 | G3/4"×14 | 21 | 20 | 52 | 32 | |
| 1ST-16 | G1"×11 | G1"×11 | 23 | 25.5 | 61.5 | 41 | |
| 1ST-20 | G1.1/4"×11 | G1.1/4"×11 | 27 | 26.5 | 66 | 46 | |
| 1ST-24 | G1.1/2"×11 | G1.1/2"×11 | 27 | 26.5 | 67.5 | 50 | |
