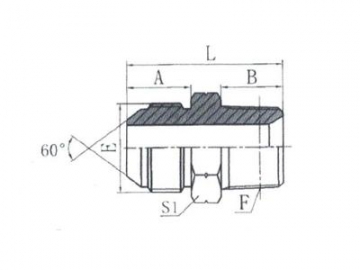

1KT-SP Metric Male 60˚ Cone Hose Adapter, JIS Standard
Application: for use with hydraulic braided hoses
Materials:- Stainless steel Metric male 60˚ cone hose adapter, JIS standard
- Carbon steel Metric male 60˚ cone hose adapter, JIS standard
| Part No. | Thread | Dimensions | |||||
| E | F | A | B | L | S1 | ||
| 1KT-14-04SP | M14×1.5 | R1/4"×19 | 17 | 14.5 | 37.5 | 17 | |
| 1KT-16-06SP | M16×1.5 | R3/8"×19 | 18 | 15 | 39 | 19 | |
| 1KT-18-06SP | M18×1.5 | R3/8"×19 | 18 | 15 | 39 | 19 | |
| 1KT-22-08SP | M22×1.5 | R1/2"×14 | 20 | 20 | 48 | 24 | |
| 1KT-24-08SP | M24×1.5 | R1/2"×14 | 21.5 | 20 | 51.5 | 27 | |
| 1KT-30-12SP | M30×1.5 | R3/4"×14 | 26 | 20 | 57 | 32 | |
| 1KT-33-16SP | M33×1.5 | R1"×11 | 30 | 25.5 | 66.5 | 36 | |
