1JO JIC Male Hose Adapter, With O-Ring
Application: for use with hydraulic braided hoses
Materials:- Stainless steel JIC male hose adapter, with O-ring
- Carbon steel JIC male hose adapter, with O-ring

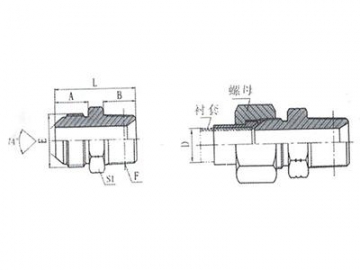

| Part No. | Thread | O-ring | Dimensions | |||||
| E | F | A | B | L | S1 | |||
| 1JO-04 | 7/16"×20 | 7/16"×20 | 8.92×1.83 | 14 | 9.14 | 29 | 14 | |
| 1JO-05 | 1/2"×20 | 1/2"×20 | 10.52×1.83 | 14 | 9.14 | 29 | 17 | |
| 1JO-06 | 9/16"×18 | 9/16"×18 | 11.89×1.98 | 14.1 | 9.93 | 30 | 17 | |
| 1JO-08 | 3/4"×16 | 3/4"×16 | 16.36×2.21 | 16.7 | 11.13 | 36 | 22 | |
| 1JO-10 | 7/8"×14 | 7/8"×14 | 19.18×2.46 | 19.3 | 12.7 | 42.5 | 27 | |
| 1JO-12 | 1.1/16"×12 | 1.1/16"×12 | 23.47×2.95 | 21.9 | 15.09 | 48 | 32 | |
| 1JO-16 | 1.5/16"×12 | 1.5/16"×12 | 29.74×2.95 | 23.1 | 15.09 | 49 | 38 | |
| 1JO-20 | 1.5/8"×12 | 1.5/8"×12 | 37.46×3.00 | 24.3 | 15.09 | 54.5 | 50 | |
| 1JO-24 | 1.7/8"×12 | 1.7/8"×12 | 43.69×3.00 | 27.5 | 15.09 | 57.5 | 55 | |
| 1JO-32 | 2.1/2"×12 | 2.1/2"×12 | 59.36×3.00 | 33.9 | 15.09 | 66 | 70 | |
