Solar Collector with Connecting Pipe (Vertical)

: http://himinsun.com/4-4-solar-collector-vertical.html

Himin manifold collector-JPS-30TX21
The first one company who get SOLAR KEYMARK certificate

Overview

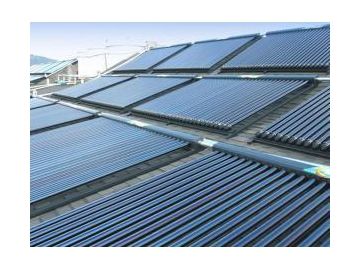

Himin's manifold collector includes the high efficiency vacuum tube. The exclusive use of the most advanced sputtered double cermet selective absorber coating gives the tube a 0.94 ≤ absorptivity ≤ 0.96 and 0.04 ≤ emissivity ≤ 0.06. The manifold collector has water inside the glass tube, and a bracket that goes with the collector. The water circulation is carried out inside the collector header, the tubes, and the water storage tank. Put together, each of those components makes up a direct system that is easily used in commercial solar hot water systems.

Physical Properties

Characteristic	Valve
Tube L/OD	2100mm/58mm
Tube no.	30PCS
Overall Length	2930mm
Overall Width	2390mm
Absorber Area	2.85㎡
Aperture Area	3.34㎡
Gross Area	7㎡
Max Operating Pressure	0kPa

Key Material Properties

Characteristic	Valve
Vacuum tube	Borosilicate 3.3 Glass
Kind of Selective Coating	AlN/AIN-SS/Cu on glass
Header Tube	SUS304
Header Casing	SPGC with Color
Header Inlet/Outlet	DN25 with male thread
Insulation	Polyurethane
Rubber Components	EPDM Silicone Rubber
Mounting Frame	Hot-dip Galvanized Steel/4mm

Performance Properties

Characteristic	Valve
Efficiency	0.737
Heat Loss co efficiency	2.81W/(㎡·K)

Installation Guidelines

Collector Array Quantity	6
Installation Angle	15-70°
