    Technical Specification
    Power Range: 280-320PS
    Model Unit EuroIII 　 EuroIV 　
    　 　 SC9DT280Q3 SC9DT320Q3 SC9DT280Q4 SC9DT320Q4
    Type 　 6 In-line, 4-Stroke, Water-cooling 　 　 　
    Aspiration mm×mm TCI 　 　 　
    Bore×Stroke L 114×144 　 　 　
    Total Displacement 　 8.8 　 　 　
    Rated Power/Rated Speed kW/r/min 206/2200 235/2200 206/2200 235/2200
    Mini Fuel Consumption g/Kw.h ≦215 　 　 　
    Maximum Torque/Speed N.m/r/min 1120/1300-1400 1250/1300-1400 1120/1300-1400 1250/1300-1400
    Noise dB(A) ≦96 　 　 　

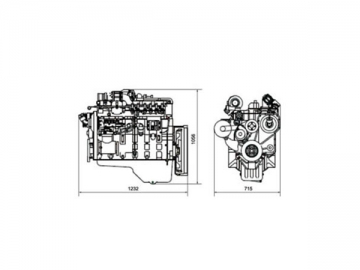

    Overall Dimension mm Length: 1232 Wide: 715 High: 1056 　 　 　
    Weight kg 760 　 　 　
