Ultra-thin Stainless Steel Wire Cloth Manufacturer

Ultra-thin Stainless Steel Wire Cloth

: http://wiremeshguardrail.com

Wire Mesh / Fine Wire Mesh / Stainless Steel Cloth

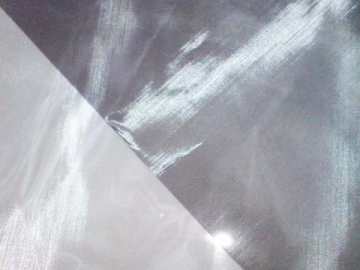

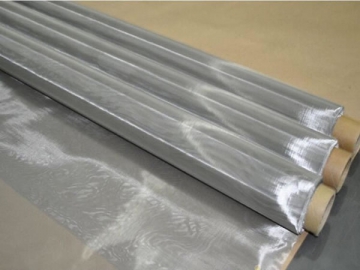

HongLi Company has been manufacturing ultra-thin stainless steel wire cloth for many years. The ultra-thin wire cloth is typically used when applications require high heat and corrosion resistance. The wire mesh is frequently used for shielding electronics form electromagnetic interference (EMI) and radio frequency interference (RFI).

Additionally the stainless steel cloth can be used as an extremely fine sieve for industrial use to remove foreign granules.

The table below shows the most common specifications

Number of meshes per inch (n)	Wire Diameter mm	Aperture W mm	Open Area Ao %
16	0.040	1.547	95
30	0.050	0.796	89
50	0.025	0.483	90
50	0.030	0.478	89
80	0.025	0.292	85
100	0.030	0.224	78
100	0.050	0.196	62
165	0.050	0.104	46
165	0.045	0.109	50
180	0.045	0.096	46
200	0.040	0.087	47
230	0.035	0.075	47
230	0.028	0.082	56
250	0.040	0.062	37
250	0.035	0.067	43
250	0.030	0.072	50
250	0.028	0.059	52
270	0.035	0.059	39
280	0.030	0.061	45
300	0.030	0.055	42
325	0.030	0.048	38
325	0.028	0.050	41
325	0.023	0.055	50
400	0.023	0.046	41
