Stainless Steel Wire Mesh Manufacturer

Stainless Steel Wire Mesh

: http://wiremeshguardrail.com

Steel Screen / Metal Mesh / Steel Mesh Screen

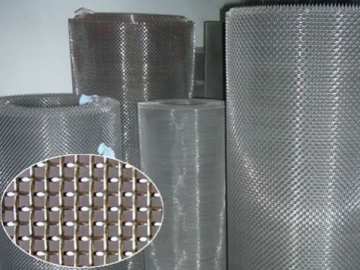

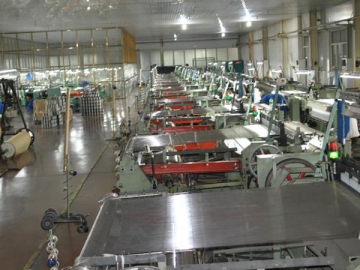

We have years of experience manufacturing woven wire mesh products and wire cloths. These stainless steel wire meshes are made from the following types of steel: 430, 302, 304, 304L 304HC, 316, 316L, 316Ti, 321, 309, 310.

The weave patterns applied for stainless steel wire mesh or wire cloth include plain weaves, twill weaves, Dutch plain weaves or Dutch twill weaves.

Material: Stainless steel wire SUS304, SUS304L, SUS316 or SUS316L for stainless steel woven wire mesh and cloth.

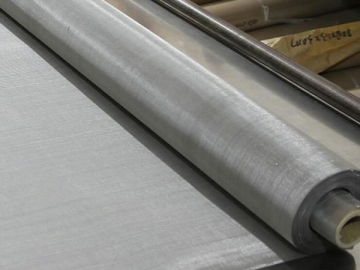

Standard roll size: Standard width of stainless steel wire mesh: 1m or 48"standard roll length of stainless steel wire mesh: 30m or 100'.

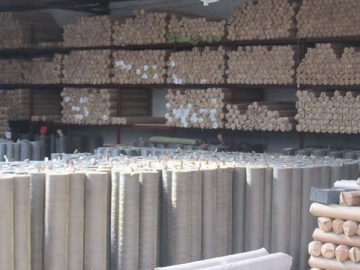

Wire Mesh Packing: wrapped with moister-proof paper, then in wooden cases.

Stainless Steel Woven Wire Mesh(Plain Weave)

Mesh/inch	Wire diameter (mm)	Aperture (mm)	Mesh/inch	Wire diameter (mm)	Aperture (mm)
2mesh	1.80	10.90	60mesh	0.15	0.273
3mesh	1.60	6.866	70mesh	0.14	0.223
4mesh	1.20	5.15	80mesh	0.12	0.198
5mesh	0.91	4.17	90mesh	0.11	0.172
6mesh	0.80	3.433	100mesh	0.10	0.154
8mesh	0.60	2.575	120mesh	0.08	0.132
10mesh	0.55	1.990	140mesh	0.07	0.111
12mesh	0.50	1.616	150mesh	0.065	0.104
14mesh	0.45	1.362	160mesh	0.065	0.094
16mesh	0.40	1.188	180mesh	0.053	0.088
18mesh	0.35	1.060	200mesh	0.053	0.074
20mesh	0.30	0.970	250mesh	0.04	0.061
26mesh	0.28	0.696	300mesh	0.035	0.049
30mesh	0.25	0.596	325mesh	0.03	0.048
40mesh	0.21	0.425	350mesh	0.03	0.042
50mesh	0.19	0.318	400mesh	0.025	0.0385

Stainless Steel Woven Wire Mesh (Twill Weave)

Mesh	Wire diameter(mm)	Aperture(mm)	Material(AISI)
250mesh	wire dia.0.040mm	0.063	304 or 316
300mesh	wire dia.0.040mm	0.044	304 or 316
325mesh	wire dia.0.035mm	0.043	304 or 316
350mesh	wire dia.0.030mm	0.042	304 or 316
400mesh	wire dia.0.030mm	0.033	304 or 316

Stainless Steel Wire Cloth (Plain Dutch Weave)

Mesh		Wire Diameter(mm)		Aperture
Vertical	Horizontal	Vertical	Horizontal	Microns
12mesh	64mesh	0.62mm	0.42mm	270-290um
14mesh	80mesh	0.50mm	0.30mm	220-240um
24mesh	110mesh	0.38mm	0.25mm	115-125um
30mesh	160mesh	0.23mm	0.18mm	95-100um
40mesh	200mesh	0.18mm	0.14mm	70-75um
50mesh	250mesh	0.14mm	0.11mm	60-63um

Stainless Steel Wire Cloth (Twill Dutch Weave)

Mesh		Wire Diameter(mm)		Aperture
Vertical	Horizontal	Vertical	Horizontal	Microns
20mesh	250mesh	0.25mm	0.23mm	110-120um
32mesh	360mesh	0.23mm	0.15mm	100-110um
40mesh	400mesh	0.18mm	0.14mm	90-110um
50mesh	500mesh	0.14mm	0.11mm	70-90um
50mesh	600mesh	0.14mm	0.09mm	60-70um
80mesh	800mesh	0.12mm	0.07mm	45-65um
165mesh	800mesh	0.07mm	0.05mm	24-26um
120mesh	1000mesh	0.08mm	0.055mm	27-28um
165mesh	1450mesh	0.07mm	0.04mm	16-18um
325mesh	2300mesh	0.038mm	0.025mm	8-9um

Note: We can customize the products according to your specifications
