Copper Wire Mesh

: http://wiremeshguardrail.com

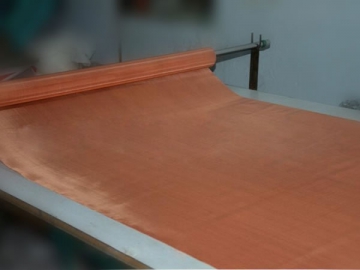

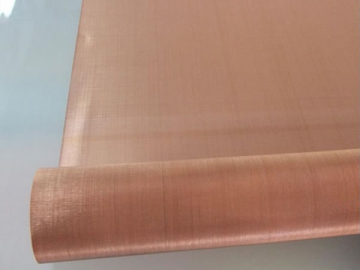

Copper Screen / Copper Mesh / Copper Wire Sheet

We produces copper wire mesh from 4mesh to 200mesh. Copper meshes are limited in application due to their low tensile strength and poor resistance to abrasion and acids. The copper screens are however exceptionally useful for shielding electronics.

Material
Copper wire: featuring a melting point of 1083℃.

Characteristics
Copper wire has excellent electric conductivity, thermal conductivity, and corrosion resistance

Uses
Copper wire mesh is often used for shielding electronic equipment against electromagnetic interference. Applications include security systemes, aviation, outer space exploration, power generation, high-frequency scientific medical equipment, and testing devices.

Weave Method
Plain weave and twill weave.

Specification List of Copper Wire Mesh

Mesh/Inch	Wire Dia mm d	Mesh Opening mm w	Opening Area A %	Weight Kgs/m2	Mesh/Inch	Wire Dia mm d	Mesh Opening mm w	Opening Area A %	Weight Kgs/m2
4	1.20	5.15	65%	3.22	50	0.15	0.358	50%	0.63
5	1.00	4.08	65%	2.50	60	0.15	0.273	41%	0.75
6	0.71	3.52	69%	1.69	70	0.13	0.232	41%	0.66
8	0.70	2.47	61%	2.19	80	0.12	0.197	39%	0.64
10	0.50	2.04	65%	1.40	90	0.11	0.172	37%	0.60
12	0.45	1.66	62%	1.36	100	0.10	0.154	37%	0.56
14	0.40	1.41	61%	1.25	110	0.09	0.141	37%	0.49
16	0.30	1.28	66%	0.80	120	0.08	0.132	39%	0.43
18	0.25	1.16	68%	0.63	130	0.07	0.125	41%	0.35
20	0.25	1.02	65%	0.70	140	0.07	0.111	38%	0.38
20	0.28	0.99	61%	0.87	150	0.06	0.109	42%	0.30
30	0.20	0.65	58%	0.67	160	0.06	0.098	38%	0.32
32	0.26	0.53	45%	1.13	180	0.05	0.091	42%	0.25
40	0.19	0.45	49%	0.80	200	0.05	0.077	37%	0.28
(Roll width):0.60m-2.9m
