Mobile Drilling Rig
Our mobile drilling rig is a hydraulic rotary head mobile geo rig. Its mobility and light weight makes this rig convenient to transport and store. Our drilling rig is reliable, efficient, and available in various specifications to suit your varying requirements.

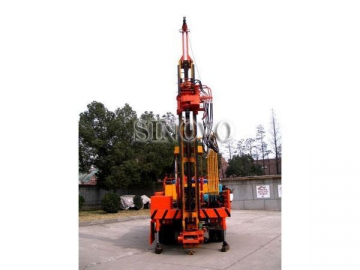

ST-200 mobile drilling rig is suitable for all kinds of covering layer and in-situ test for quaternary geology stratification. It is widely used in industrial and civil defense facilities, highway, railway, bridges, water conservancy, electric power, coal, oil, harbor, municipal projects, geophysical blasting hole and bedrock drilling, etc. Built on our expertise and years of experience, our mobile drilling rig has many functional characteristics, such as static pressure, rotation, vibration pounding and shocking. Static sounding is also optional.

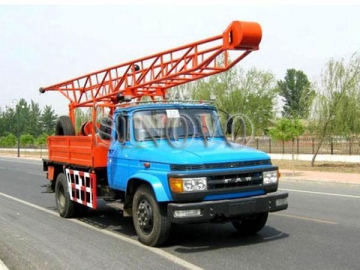

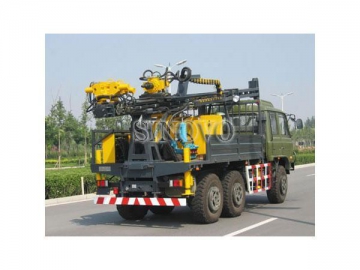

ST-600 drilling rig is a kind of full hydraulic driving drilling equipment installed on the chassis of diesel truck. It is increasingly used for diamond bit drilling and carbide bit drilling of solid bed, and also used in exploring drilling and base or pile hole drilling and the small water well drilling.

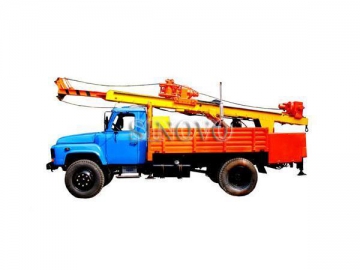

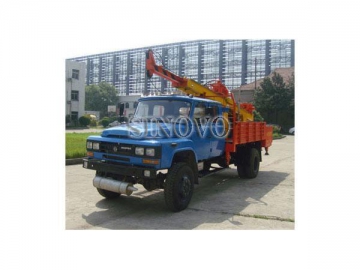

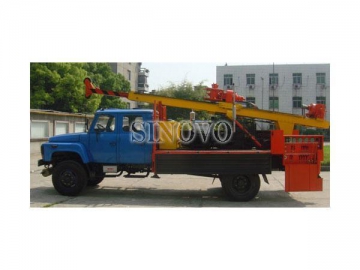

ST-100 mobile drilling rig is a kind of rotary drilling equipment installed on the chassis of truck. It is equipped with auxiliary hoisting device, drilling fed by hydraulic oil pressure.
Applications of Mobile Drilling Rig
- Exploration in shallow holes of mine and seismic exploration drilling.
- In liquids and natural gas holes drilling.
- Construction shot drilling.
- Geological exploration and shallow water well drilling.
We are an ISO9001: 2015 certified manufacturer of mobile drilling rigs. Our primary products include piling rigs, desanders, and hydraulic crawler drills etc. Due to their high performance, great stability and long service life, our products are CE certified. Located in Beijing, we enjoy convenient transportation, so it is easy for customers to ship their products, at lower costs.
We welcome you to contact us! Thank you!
| Technical Parameters | ||||
| EURO standards | U.S. standards | |||
| Max drilling depth | With 200mm bit | 70m | With 7.9inch bit | 229.7feet |
| With 150mm bit | 100m | With 5.9inch bit | 328feet | |
| Rotary table | ||||
| Spindle speed | 65,114,192rpm | 65,114,192rpm | ||
| Max feeding capacity | 48KN | 10791lbf | ||
| Max pulling capacity | 70KN | 15737lbf | ||
| Feeding stroke | 1200mm | 47inch | ||
| Main hosting device | ||||
| Rotation speed of frum | 28,48.8,82.3rpm | 28,48.8,82.3rpm | ||
| Hosting speed(single wire) | 0.313,0.544,0.917m/s | 1,1.8,3 feet/s | ||
| Single wire lifting capacity | 12.5KN | 2810lbf | ||
| Mud pump | ||||
| Max operating pressure | 2Mpa | 290psi | ||
| Max displacement of water | 450L/min | 99UK gallon/min | ||
| Hydraulic oil pump | ||||
| Operating pressure | 8Mpa | 1160psi | ||
| Hydraulic oil flow | 35L/min | 7.8UK gallon/min | ||
| Hydraulic mast | ||||
| Max operating pressure | 8Mpa | 1160psi | ||
| Outfit weight | 9650kg | 21275lb | ||
| Technical Parameters | ||
| EURO standards | U.S. standards | |
| Power | 40KW | 53.6hp |
| Max drilling diameter | pile hole Φ400mm | pile hole Φ15.7inch |
| Max drilling depth | Depth 200m | Depth 656feet |
| Elevating travel of power pack | 4m | 13feet |
| Promoted force of power pack | Rated 10000kgf/max.150000kgf | Rated 22031lbf/max.33047lbf |
| Stress of power pack | Rated 9000kgf/max.10000kgf | Rated 19828lbf/max.22031lbf |
| Feed speed of power pack: | 0-5m stepless speed regulating | 0-16.4feet stepless speed regulating |
| Rotational speed of power pack | 0-780rpm/min | 0-780rpm/min |
| Torque of power pack | max.815kg.m | max.5891lbf.ft |
| Frequency of vibratory hammer | 1100time/min | 1100time/min |
| Max shocking force | 2203lbf | 2203lbf |
| Horizontal travel of power pack | 365mm/min | 14inch/min |
| Hoist | ||
| Max elevating power(single rope) | 3500kg | 7716lb |
| Continuous gyroscopic moment of pipe removal | 250kg.m | 250kg.m |
| Clamping diameter of gripping pliers | Φ38-Φ146mm | Φ1.5-Φ5.7inch |
| Lifting force of gripping pliers | 4000kgf | 8812.5lbf |
| Down force of gripping pliers | 3000kgf | 6609lbf |
| Elevating travel | 150mm | 5.9inch |
| Height of drill tower | 7530mm | 296inch |
| Loading capacity | 5T | 11023lb |
| Drive for vehicle | Front and rear double-axle drive | Front and rear double-axle drive |
| Complete weight of the vehicle | 8500kg | 18739lb |
| Technical Parameters | ||||
| EURO standards | U.S. standards | |||
| Power (diesel engine ) | 105KW/2200rpm | 141hp/2200rpm | ||
| Drilling capacity | Hole Φ75mm | 600m | Hole Φ3inch | 1968feet |
| Hole Φ220mm | 450m | Hole Φ8.7inch | 1476feet | |
| Hole Φ300mm | 300m | Hole Φ11.8inch | 984feet | |
| Rotary head | ||||
| Rotation speeds | 71-693 rpm | 71-693 rpm | ||
| Max torque | 735-4700N.M | 524-3467lbf.ft | ||
| Hydraulic driving head feeding distance | 4200mm | 165inch | ||
| Hydraulic driving head feeding system | ||||
| Lifting force | 60KN | 13489lbf | ||
| Feeding force | 43KN | 9667lbf | ||
| Mast displacement system | ||||
| Distance | 1000mm | 39inch | ||
| Lifting force | 80KN | 17985lbf | ||
| Feeding force | 54KN | 12140lbf | ||
| Clamp machine system | ||||
| Diameter | 50-220mm | 2-8.7inch | ||
| Unscrews machine system | ||||
| Torque | 6000N.m | 4425lbf.ft | ||
| Winch | ||||
| Single rope force | 30KN | 6744lbf | ||
| Mud pump | ||||
| Distance | 100mm | 3.9inch | ||
| Volume | 250,145,90,52 L/min | 55,32,20,11UK gallon/min | ||
| Pressure | 2.5,4.5,6.0,6.0Mpa | 363,653,870,870psi | ||
| Total weight | 12000kg | 26455lb | ||

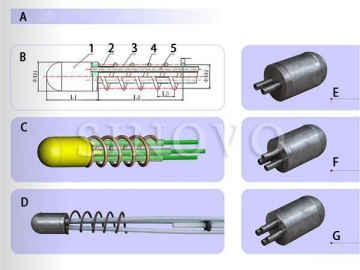

A. OQM-d Series Retrievable Anchorage Cable
B. Sectional View
1. Supporting Part
2. Connector
3. Plastic Pipe
4. Coil
5. Steel Strand

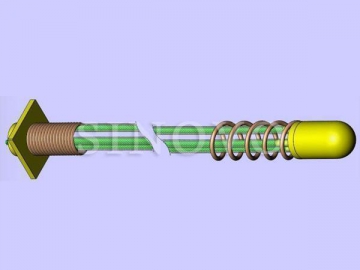

C. 3D Drawing
D. Product Photo
E. 2 holes
F. 3 holes
G. 4 holes
