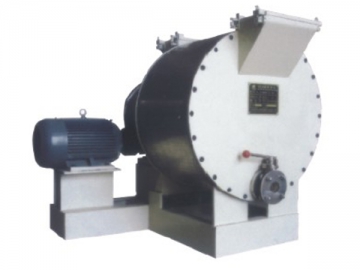

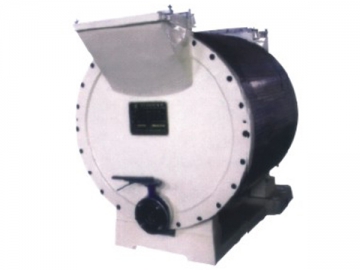

The chocolate conche is the main equipment in chocolate production line. It is mainly used for the fine grinding of chocolate syrup. Our company provides five types of this product with the volume of 20L, 100L, 500L, 1500L and 3000L. The  20L type product takes 8 to 10 hours to grind the chocolate syrup to 20-25μm while the 100L type product needs 12 to 16 hours to reach this fineness. The remaining three types of machine need 16-22 hours. The fine grinding time is closely related to the amount of the syrup and the spindle speed. The spindle speed of the 20L product and the 3000L product is 93r/min and 35r/min respectively.




Specifications

Item

20L

100L

500L

1500L

3000L

Max. Capacity (L)

20

100

500

1500

3000

Grinding Fineness (μm)

20-25

20-25

20-25

20-25

20-25

Spindle Speed (r/min)

93

48

33

35

35

Fine Grinding Time (h)

8-10

12-16

16-22

16-22

16-22

Main Motor Power (KW)

1.5

5.5

15

22

45

Electric Heating Power (KW)

0.6

2.5

5

6

12

Weight (kg)

295

1050

2572

4850

7500

Overall Dimensions (mm)

920×600×1110

1200×1150×1050

2000×1860×1280

2920×1912×1920

3450×2016×2280
