Chocolate Coating Machine/Enrober

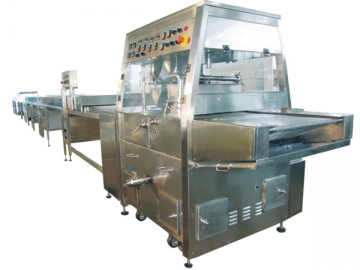

The QH series chocolate coating machine or enrober is a special piece of equipment for the production of chocolate coating food. It can coat chocolate syrup on the surface of many kinds of food, such as candy, cake, biscuit, etc.

Specifications

Item/Model	QH400	QH600	QH800	QH1000
Width of the Mesh Belt(mm)	400	600	800	1000
Speed of the Mesh Belt (m/min)	1-6	1-6	1-6	1-6
Refrigerating Unit (set)	2	2	2	3
Tunnel Length (m)	10	14	18	22
Tunnel Temperature(℃)	2-10	2-10	2-10	2-10
Total Power (KW)	10	16.5	20	28.5
Weight (kg)	1800	2300	3200	4050
Overall Dimensions (mm)	13160 ×700 ×1500	17500 ×950 ×1800	21500 ×1100 ×1800	25500 ×1250 ×1800

We provide four types of the chocolate coating machine or enrober. The width of the mesh belt of these products is 400mm, 600mm, 800mm and 1000mm respectively. Automatic feeding is completed at the speed of 1 to 6m/min. The transported food are arranged in order and the positioning is accurate, thus significantly improving the working efficiency. Each type of product is equipped with two or three sets of refrigerating units and the temperature inside the tunnel with the length of 10 to 22m is 2 to 10℃.

Products produced by this equipment are shown below.
