LCK6120A Coach (Compass)

This bus is specially designed for Africa market with Cummins engine in front. It features excellent cooling system, strong power, and low fuel consumption. The electric retarder works to enhance braking capacity, shorten braking distance and make the vehicle much safer. The metal covering in the front wall enhances the coach's safety. The coach possesses a powerful passing ability with the approaching angle reaching 13°.

Overall specification	overall dimension (mm)		11450	Engine	engine model	L325 20
	overall width (mm)		2550		manufacturer	Cummins (China)
	overall height (mm)		3850		engine position	Front
	body inside height (mm)		1940		engine type	6 cylinders in-line, turbocharged with intercooler
	wheel base (mm)		5800		max power (kw)	239
	front/rear overhang (mm)		2340/3310		max torque (N.M)	1350
	approach/departure (º)		9/13		displacement (l)	8.9
	first step height (mm)		480		bore/stroke mm	114X144.5
	max g.v.w. (kg)		18000		fuel
	seats capacity (person)		60 1/ 51 1	steering position
	max speed km/h		120
	luggage cabin m3		8
Item		Standard					Optional
Chassis specification	manufacturer	made in Zhongtong
	gear box	S6-160, ZF technology, six gears
	clutch	coil spring, Ø430
	front axle	7.5t front axle
	rear axle	13t third axle
	suspension	multi-leaf spring suspension
	steering	integral assistant power steering
	brake	dual circuit air braking, drum brake
	fuel tank	400L 400L
	tyre	315/80R22.5 double coin
	battery /dynamo	2×12V/195Ah / 28V /150A 140A
	others	brake slack auto adjuster, electric retarder, ABS

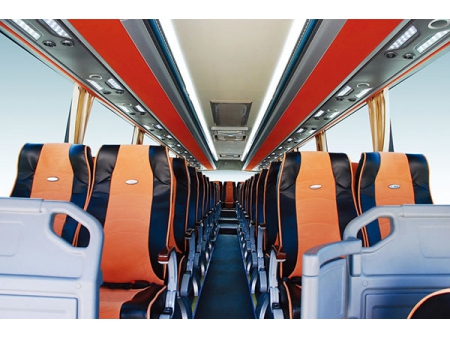

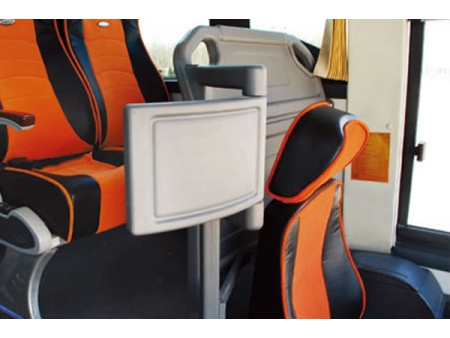

	seat	fixing type cloth seatsztzy3072, 3 2 layout 60 1, or 2 2 layout 51 1, driver seat ztzy1050

6127H Coach

Bus parameters	total length (mm)	12590	Engine	model	ISLe 375 40
	total width (mm)	2550		manufacturer	Cummins
	total height (mm)	3830		position/fuel	real
	inner height (mm)	2020		type	straight 6 cylinder, medium cooling
	wheelbase	6400		max power (kw)	275
	front/rear suspension (mm)	2800/3390		max torque (N.M)	1550
	approach angle/departure angle (º)	8/7.5		displacement (ml)	8900
	height of single step (mm)	≤380		cylinder diameter × stroke (mm)	126X130
	max total mass defined by factory (kg)	13370/18000		fuel	diesel
	rated capacity (person)	51 1 1		emission standard	European standard 4
	max speed (km/h)	120	Certification		ISLe375 40, passed the GOSTR certificate
	luggage compartment volume (m3)	9	Inner bus model		LCK6127HE
Item		Standard configuration				Optional configuration
Chassis parameters	gearbox	Fast 6DS 180T 6 speed transmission				ZF 6S 1700BO 6 speed box
	clutch	SACHS φ430, single plate, dry
	front axle	independent front axle from Jinben, 6.5T
	rear axle	Dongfeng Dana, 13T
	suspension	full airbag (6 airbags, 6 shock absorbers)
	steering	servo steering gear, steering wheel lock
	brake	double circuit brake; front/gear disc brake; WABCO ABS/ASR, Eddy current retarder
	fuel tank	300L 300L, oil circuit preheating, cold start
	tire	295/80R22.5 (Double Coin)				Michelin
	accumulator/alternator	2×12V/200Ah / 28V/140A 150A
Main components	Bus frame	full bearing structure, concave floor structure				noise absorber for rear bottom panel of the middle gate
	decorative	A type aviation luggage rack, panel with 3 cigarette lighters				B type luggage rack
	door and door pump	Aluminum door, remote controlled door lock, pneumatic front/middle/back passenger door
	side window / windscreen	bonded hollow side window; fully sealed; transparent glasses for driver cab and door window; black glass for others; laminated front glass; toughened rear glass; shade curtain
	rear view system	electrically defrosting rearview mirror; three-lens color LCD screen; monitor (with recording function)
	air conditioner	30000Kcal/h (Bitzer compressor)
	heater system / defroster	SPHEROS 35KW, wall-mounted forced heat sink, 8/4 large-power heat sink, plumbing defroster (air intake from outside)
	audiovisual system	DVD/hard disc machine; 19-inch LCD screen for front door; 17-inch non collapsible LCD screen for middle door; microphone
	lamps	front combination light, rear combination light, brake light
	door	hand-operated side-loading compartment door, aluminum door				bathroom and driver restroom (7.6m3)
	seat	ZTZY3210 luxury seat with adjustable pedal, backrest, and armrest; ZTZY1052 driver seat with airbag; safety belt for each seat, ZTZY2070 tourist guide seat				ISRI NTS armrest for driver seat
	paint	solid color paint				metallic paint, pearl paint
	others	automatic fire extinguishing system for engine compartment; GPS interface; dormer; 2 DS265 ventilators; water tank; LED light; 220V power supply (25-30kw); electronic clock; curtain for side window; 24V converter (220V, 220W); Stainless steel fully enclosed decorative cover for tires				carpet; driver 's rest compartment; bathroom; cloth curtains; shade curtain; water dispenser
Remark: bus model especially for Russia and Kazakhstan alliance area

LCK6125A Coach (Compass)

Overall specification	overall dimension (mm)		12500	Engine	engine model	L360 20
	overall width (mm)		2550		manufacturer	Cummins (China)
	overall height (mm)		3850/3710		engine position	Front
	body inside height (mm)		1940		engine type	6 cylinders in-line, turbocharged with intercooler
	wheel base (mm)		5800 1350		max power (kw)	264
	front/rear overhang (mm)		2340/3150		max torque (N.M)	1480
	approach/departure (º)		10/13		displacement (l)	8.9
	first step height (mm)		400		bore/stroke mm	114X144.5
	max g.v.w.kg		21500
	seats capacity (person)		61 1/ 70 1
	max speed (km/h)		120
	luggage cabin (m3)		10.4
Items		Standard					Optional
Chassis specification	manufacturer	made in Zhongtong
	gear box	S6-160, ZF technology, six gears
	clutch	coil spring, Ø430
	front axle	7.5t front axle
	rear axle	13t rear axle
	third axle	5t third axle
	suspension	multi-leaf spring suspension
	steering	integral assistant power steering
	brake	dual circuit air braking, drum brake
	fuel tank	400L 400L
	tyre	315/80R22.5
	battery /dynamo	2×12V/195Ah / 28V /150A 140A
	others	brake slack auto adjuster, electric retarder, ABS
	seat	adjustable seats, ZTZY3210 2 2 layout 61 1; fixed seats, ZTZY3072, 3 2 layout 70 1; driver seat ZTZY1050

6137H Coach

Bus parameter	total length (mm)		13700	Engine	model	ISME420 30/L375 20/ OM 457LA
	total width (mm)		2540		manufacturer	Xi'an Cummins/Dongfeng Cummins / Mercedes-Benz
	total height (mm)		3885/3780 (no air conditioner)		position/fuel	Xi'an Cummins/Dongfeng Cummins / Mercedes-Benz
	inner height (mm)		2020		type	straight 6-cylinder, water cooling, intercooling
	wheelbase (mm)		6200/1600		max power (kw)	306/276/260
	front/rear suspension (mm)		2585/3415		max torque (N.M)	2010/1480/1750
	approach angle/departure angle (º)		10.3/9.7		displacement (ml)	10800/8900/11970
	height of single step (mm)		480		cylinder diameter × stroke (mm)	125×147/114X144.5/128*155
	max total mass defined by factory (kg)		22000		emission standard
	rated capacity (person)		59 1 1 1	max speed (km/h)	120
	Luggage compartment volume (m3)		9 (through type)
Item		Standard configuration			Optional configuration
Chassis parameter	chassis	LCK6133RA/Zhongtong
	gearbox	Fast 6DS180T 6 speed transmission			· Benz GO210-6E (Benz engine, hydrodynamic retarder)
	clutch	SACHS φ430, single plate, dry, diaphragm spring, imported clutch
	front axle	Dongfeng Dana, 6.5T			Benz F7.5, disc brake
	rear axle	Dongfeng Dana, 13T (precision grinding gear)
	third axle	Dongfeng Dana, 7.5T			Benz R440, 13T rear axle, disc brake
	suspension	air suspension with 8 airbags, imported shock absorber
	steering	integral power steering gear			ZF8098
	brake	disc brake, WABCO ABS/ASR, retarder
	fuel tank	600L			300L×2
	tire	12R22.5 (Double Coin) 1 spare tire			Aluminum tire315/80R22.5, Double Coin/ Michelin
	accumulator/alternator	2×12V/200Ah / 28V/140A 140A Prestolite			150A engine from Benz
	seat	ZTZY3210 luxury seat; lateral movement; adjustable pedal; ZTZY1050 driver seat; ZTZY2020 tourist guide seat			adjustable pedal; ZTZY3300 commercial seat
