API Pipe Mill

: http://pipemillsolution.com/pipe-mill-for-api-pipe-production.html

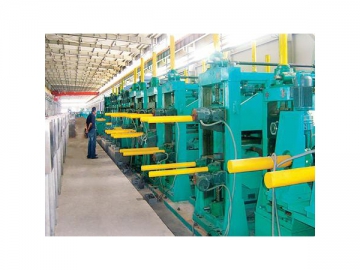

This API pipe production pipe mill is a complete line of equipment applied for pipe and tube manufacturing. The machinery is used to produce API pipes used in petroleum and gas pipelines. These lines are suitable for pipes made from hot rolled steel. The pipes will undergo cold roll forming, high frequency welding, submerged arc welding, and other processes, resulting in high-quality products. The API pipe production line is equipped with ZTF forming technology that eliminates the need for the changing of rollers in the breakdown section.

Advantages

The maximum outer diameter of the straight seam welded pipe can reach up to 720mm
It is suitable for high strength, thick steel
With ZTF forming technology you can save up to 60% on rollers
Electric control and automatic adjustment reduces roller changing time while increasing accuracy and speed

Model	Round pipe mm	Thickness mm	Working speed m/min
	Ф60-Ф140	2.0-5.0	60
	Ф76-Ф165	2.0-6.0	50
	Ф89-Ф219	2.0-8.0	50
	Ф114-Ф273	3.0-10.0	45
	Ф140-Ф325	4.0-12.7	40
	Ф165-Ф377	4.0-14.0	35
	Ф219-Ф406	6.0-16.0	30
	Ф273-Ф508	6.0-18.0	25
	Ф325-Ф660	6.0-20.0	20
	Ф355-Ф720	6.0-22.0	20
