Stainless Steel Pipe Mill

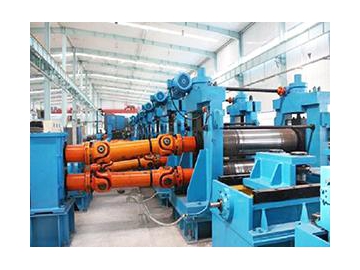

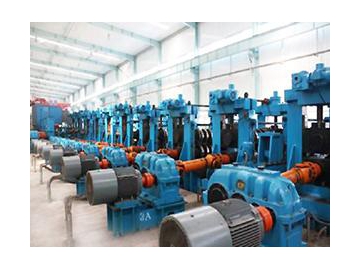

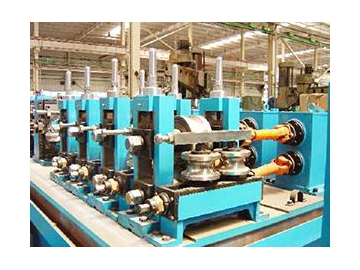

Our stainless steel pipe mill is a complete production line designed to manufacture straight welded pipes from stainless steel raw materials. With the pipe mill you can produce pipes of various shapes (round pipe, square pipe, rectangular pipe) through cold roll forming, argon arc welding, and TIG welding technology. The stainless steel pipes can be produced from 6 to 508mm in outer diameter.
Steel Pipe Manufacturing Process:
Scrolling up→ Forming → Welding→ Grinding → Sizing→ Straightening→ Cutting→ Run out table →Inspecting→ Packing→ Warehouse
| Model | Round pipe mm | Square pipe mm | Thickness mm | Working speed m/min |
| SS25 | Ф6-Ф25 | 5x5-20x20 | 0.2-0.8 | 10 |
| SS32 | Ф6-Ф32 | 5x5-25x25 | 0.2-1.0 | 10 |
| SS51 | Ф9-Ф51 | 7x7-40x40 | 0.2-1.5 | 10 |
| SS64 | Ф12-Ф64 | 10x10-50x50 | 0.3-2.0 | 10 |
| SS76 | Ф25-Ф76 | 20x20-60x60 | 0.3-2.0 | 10 |
| SS114 | Ф38-Ф114 | 30x30-90x90 | 0.4-2.5 | 10 |
| SS168 | Ф76-Ф168 | 60x60-130x130 | 1.0-3.5 | 10 |
| SS219 | Ф114-Ф219 | 90x90-170x170 | 1.0-4.0 | 10 |
| SS325 | Ф219-Ф325 | 170x170-250x250 | 2.0-8.0 | 3 |
| SS426 | Ф219-Ф426 | 170x170-330x330 | 3.0-10.0 | 3 |
| SS508 | Ф273-Ф508 | 210x210-400x400 | 4.0-12.0 | 3 |
